Ultimate Weather Protection Louvre

Designed for superior rain protection, the VL-3SD features a three-stage blade system and a two-piece pressure-equalised mullion for effective water management. The shallow 150mm frame depth ensures easy integration into facades, and clip-fixed front blades allow for large-scale, uninterrupted louvre spans. This versatile system is ideal for applications in hospitals, data centres, and apartment buildings where both performance and design flexibility are essential.

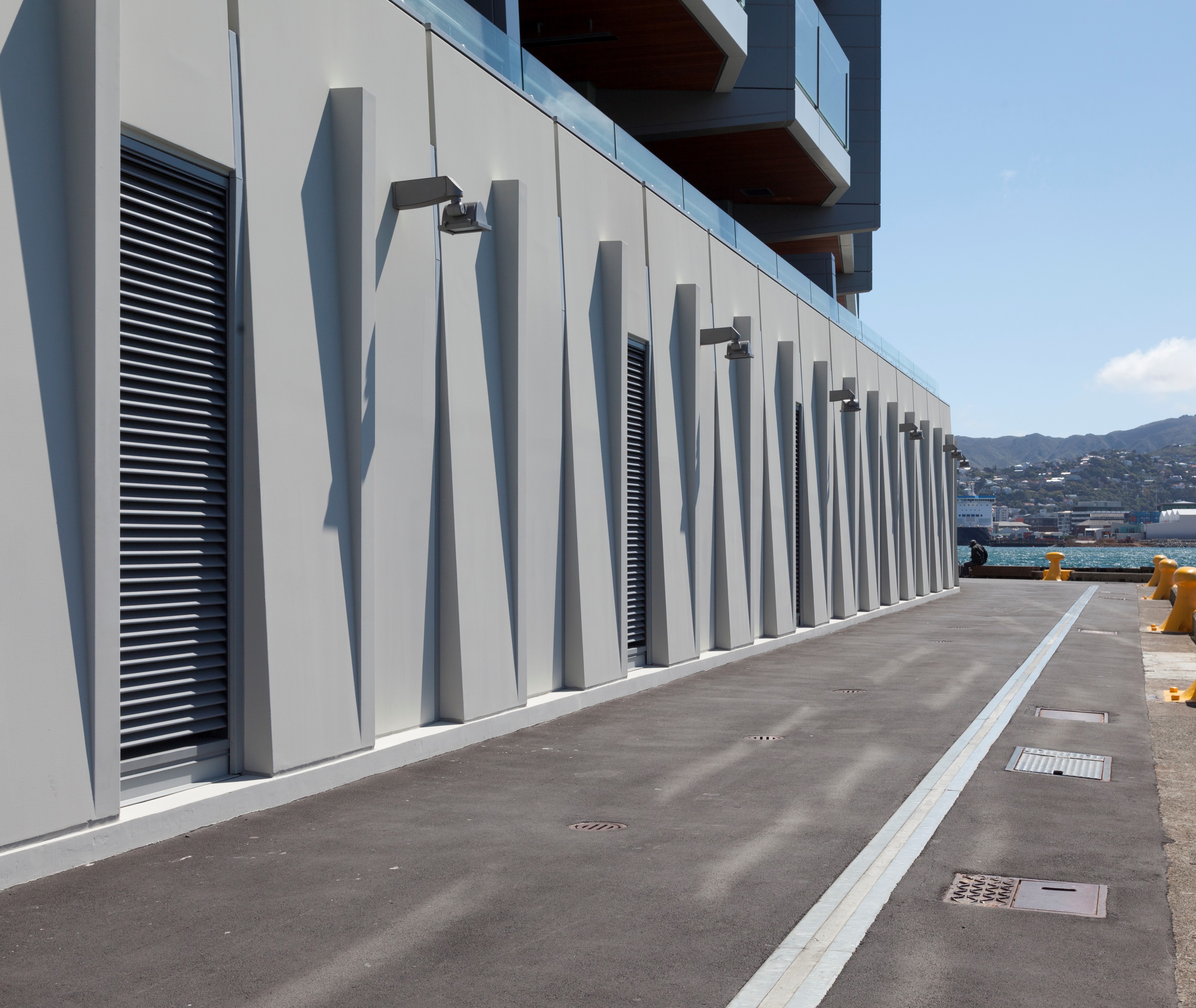

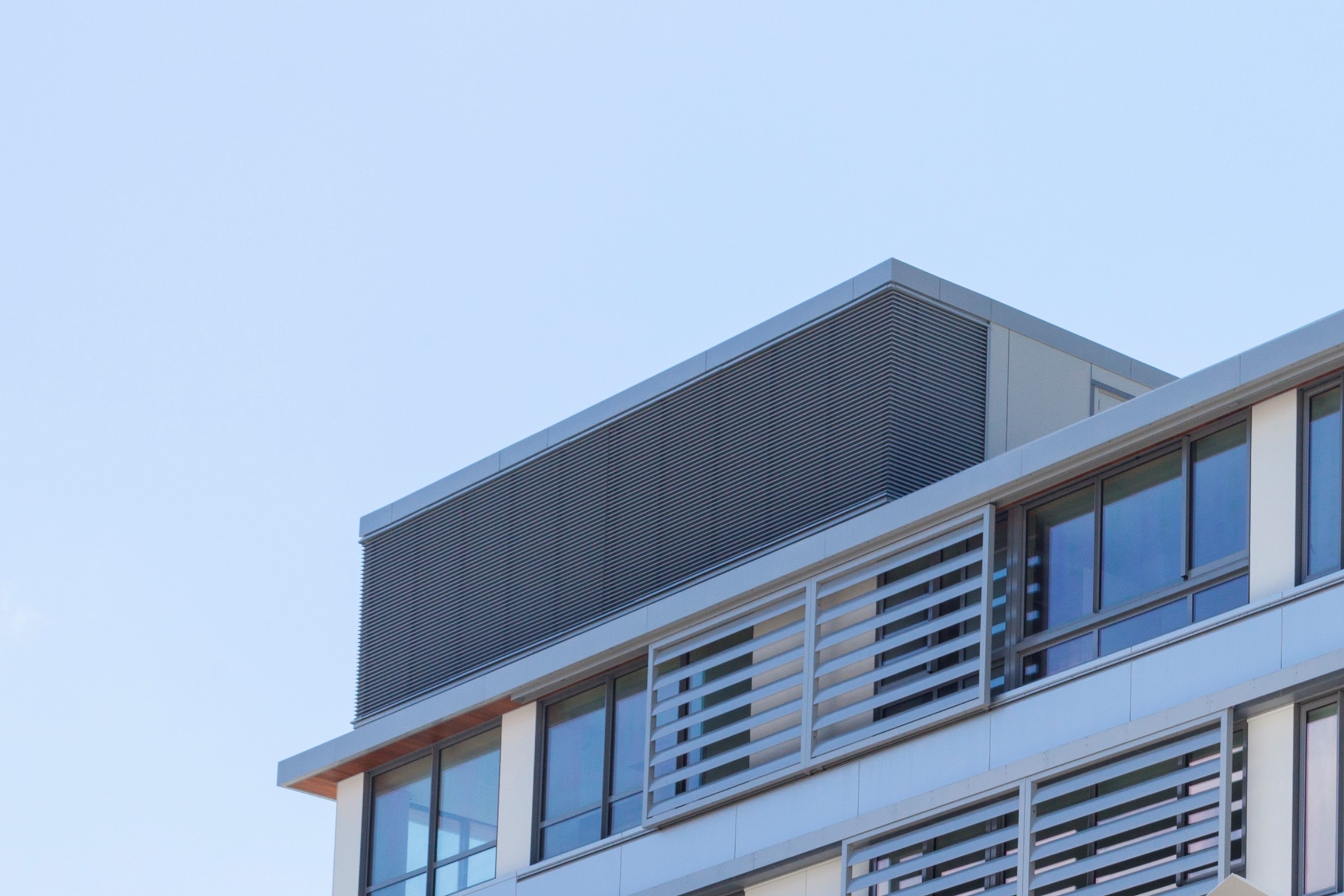

VL 3SD Installed
VL 3SD installation images 2

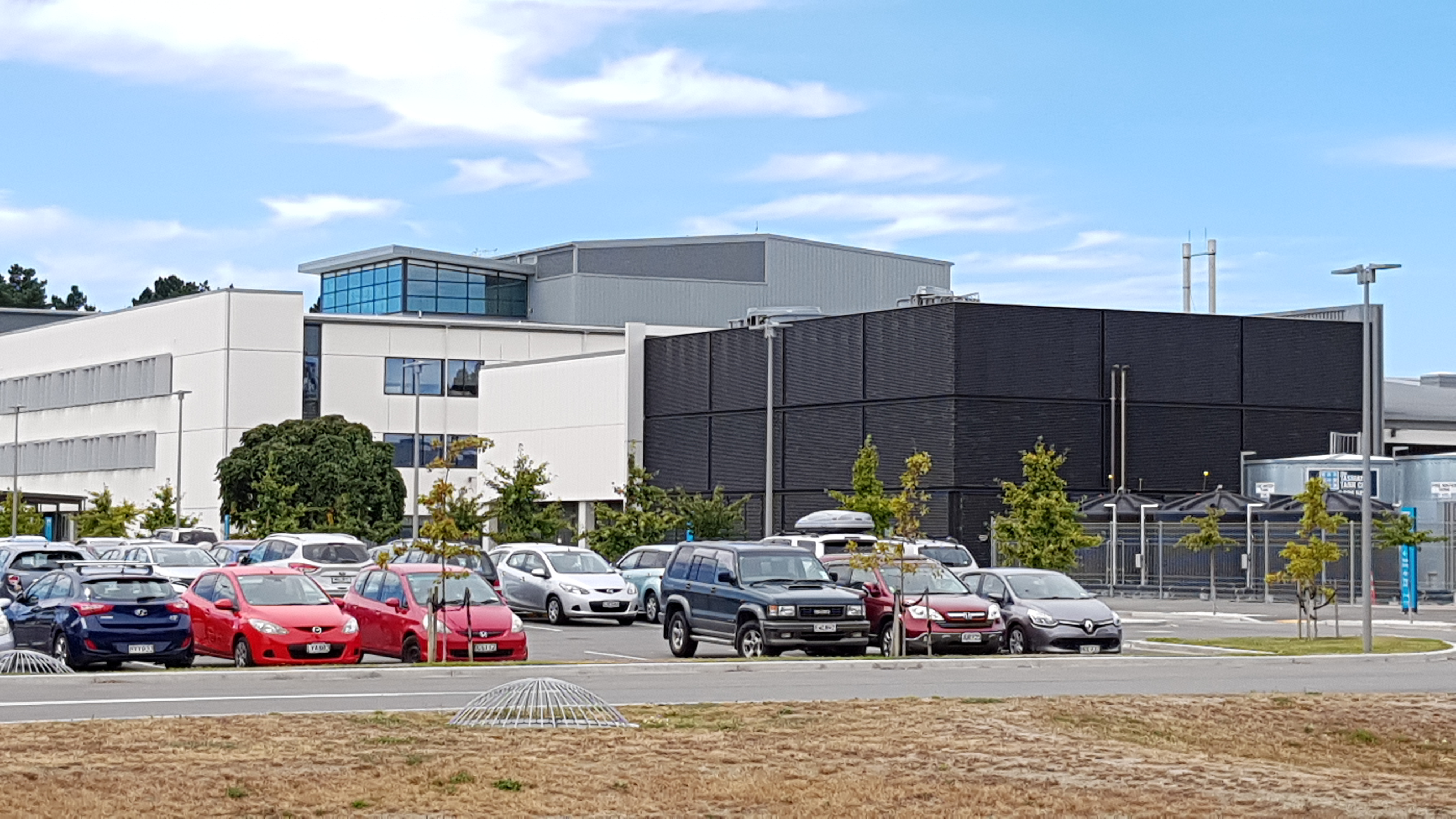

VL 3SD Burwood
Specifications
Data Sheet
Compliance Documents
Revit
CAD
Case Studies
Specifications
Data Sheet
Compliance Documents
Revit
CAD
Case Studies
Dimensions

Depth: 150mm

Height: Minimum 350mm, No Maximum Height (panels greater than 2500mm high will be delivered kitset to site)

Width: Minimum 200mm, No Maximum Width (panels greater than 3000mm wide will be delivered kitset to site)


Blade Centres

50mm


Rain Defence Performance (BS/EN 13030:2001)

Class A - up to 2.5m/s suction velocity

Class B - up to 3.5m/s suction velocity


Aerodynamic Performance (BS/EN 13030:2001)

Air Inlet: 0.201, Class 3

Air Extract: 0.157, Class 4


Geometric Free Area (active blades only)

44%


Surface Finish Options

Powdercoated

Anodised

Raw Aluminium (Mill)


Perimeter Frame Options

Channel Frame

Flanged Frame

Glazed-In Frame


Ancillaries Options

Bird Mesh

Insect Mesh

Solid Blanking

Perimeter Mounting Angle



VL-3SD Data Sheet (PDF)

View

VL-50CM_2SD_3SD Mullion Span Table
