VL-VF2

Vertical Blade Louvre

The VL-VF2 is specifically designed to deliver exceptional rain defence and low pressure loss, making it ideal for environments requiring robust ventilation solutions. The vertical blade design enhances airflow while using gravity and surface tension to direct water away, ensuring reliable performance in adverse weather. With a shallow 100mm frame, it integrates easily into various facades elements including window joinery. Unlike horizontal louvres, the vertical configuration allows low-height installations while preserving active ventilation capacity. Commonly used in data centres, dairy factories, and apartments.

1 Willis St high res 002 min

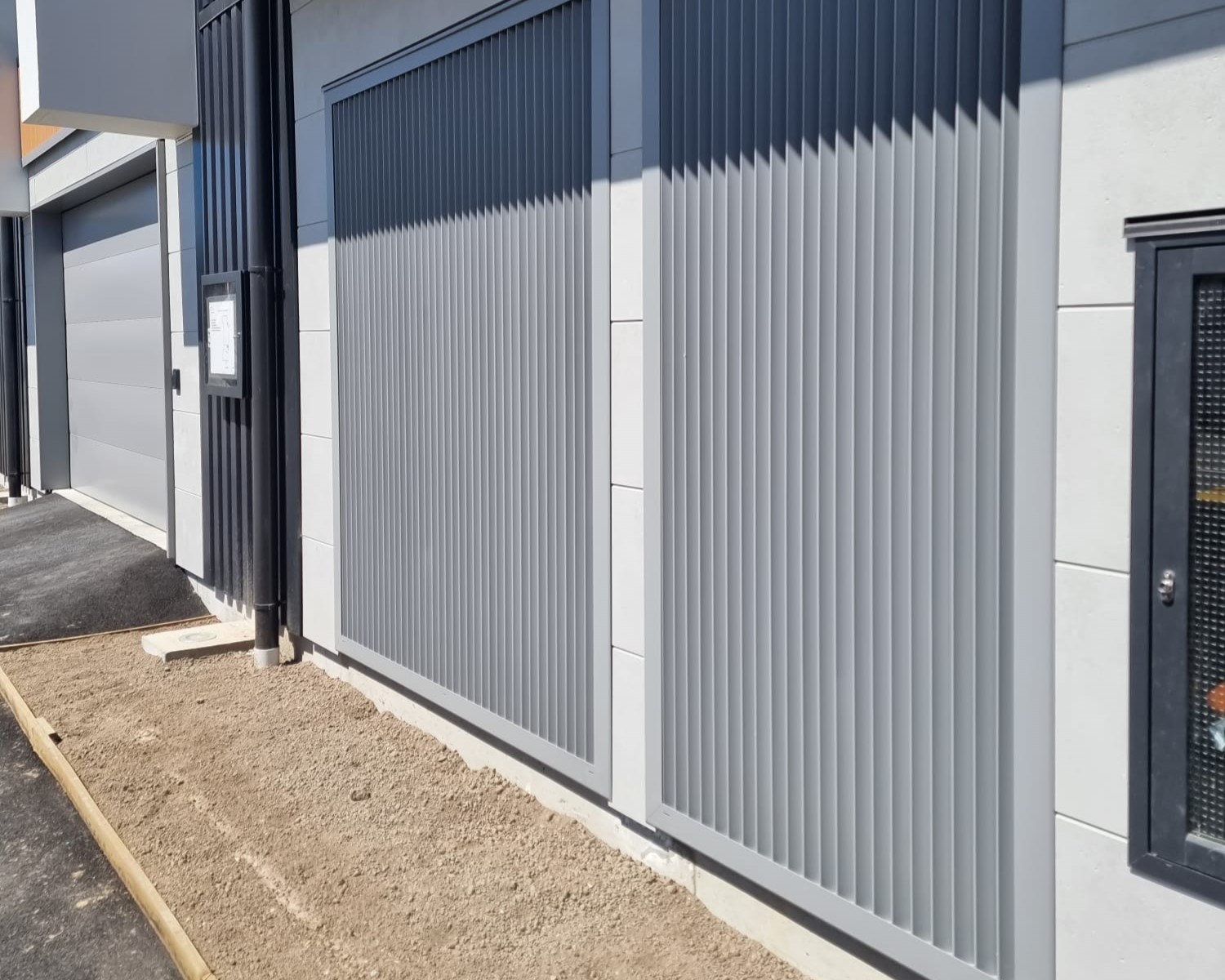

VL VF2 Anscombe 2

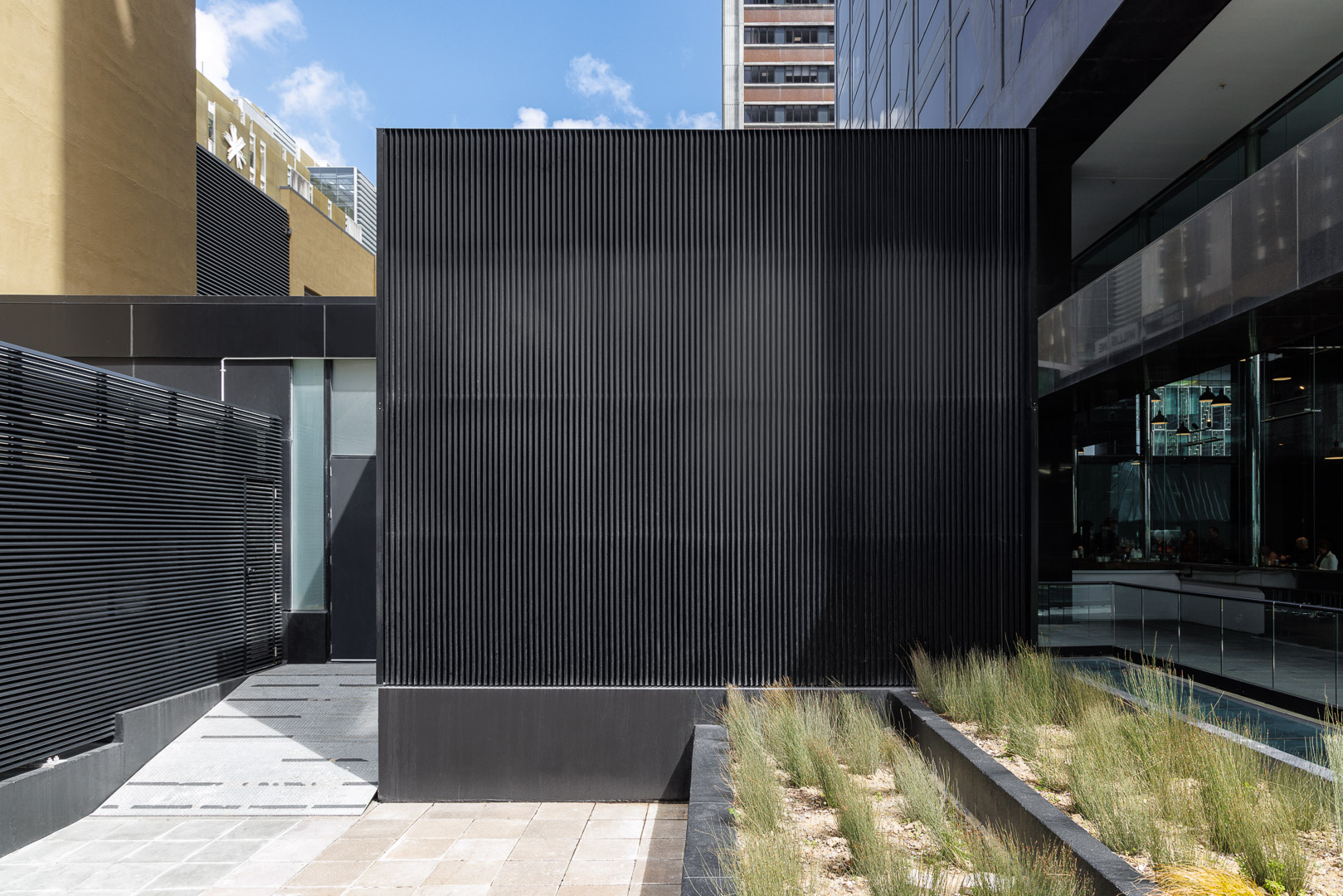

1 Willis St low res 004

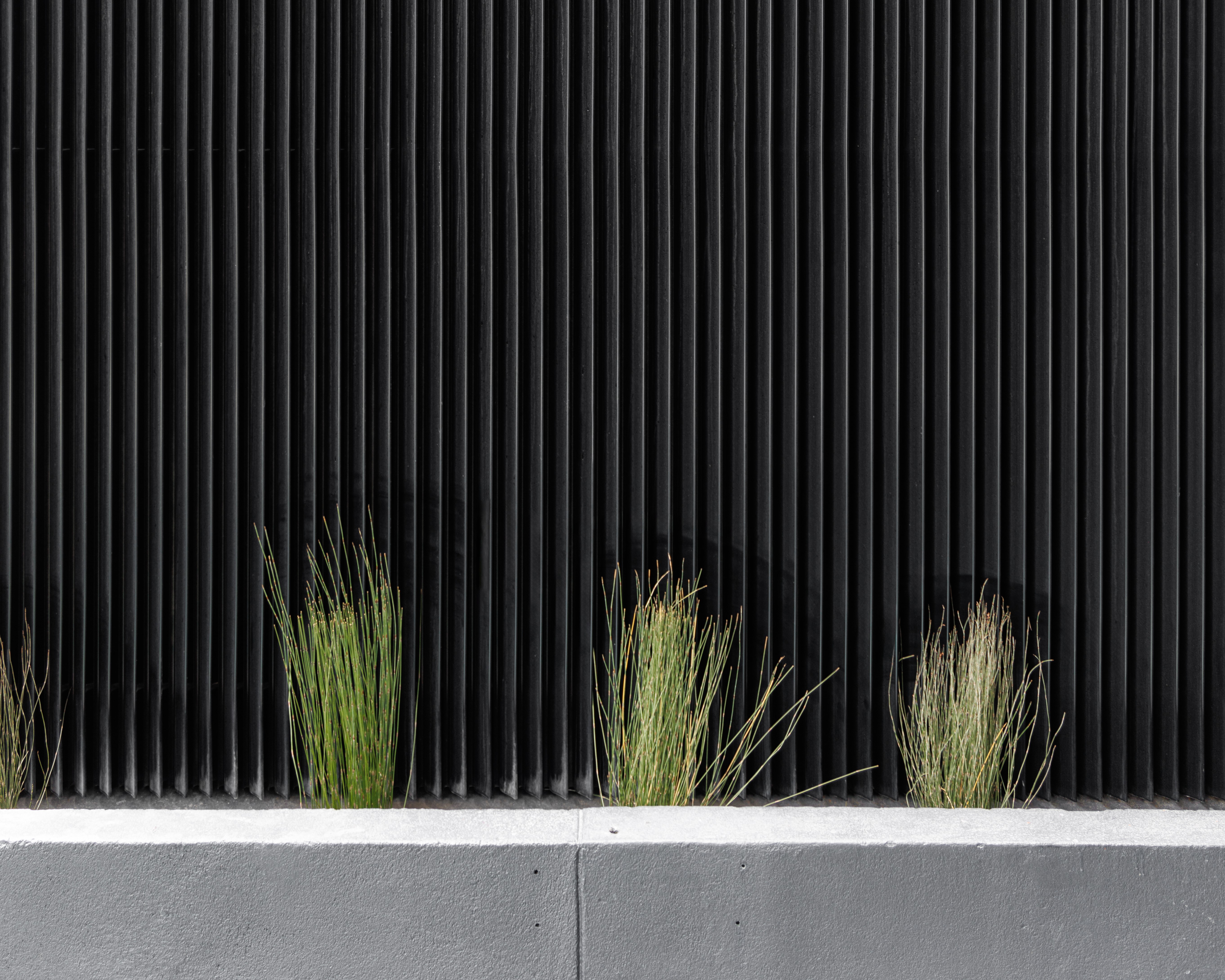

1 Willis St high res 008 v2

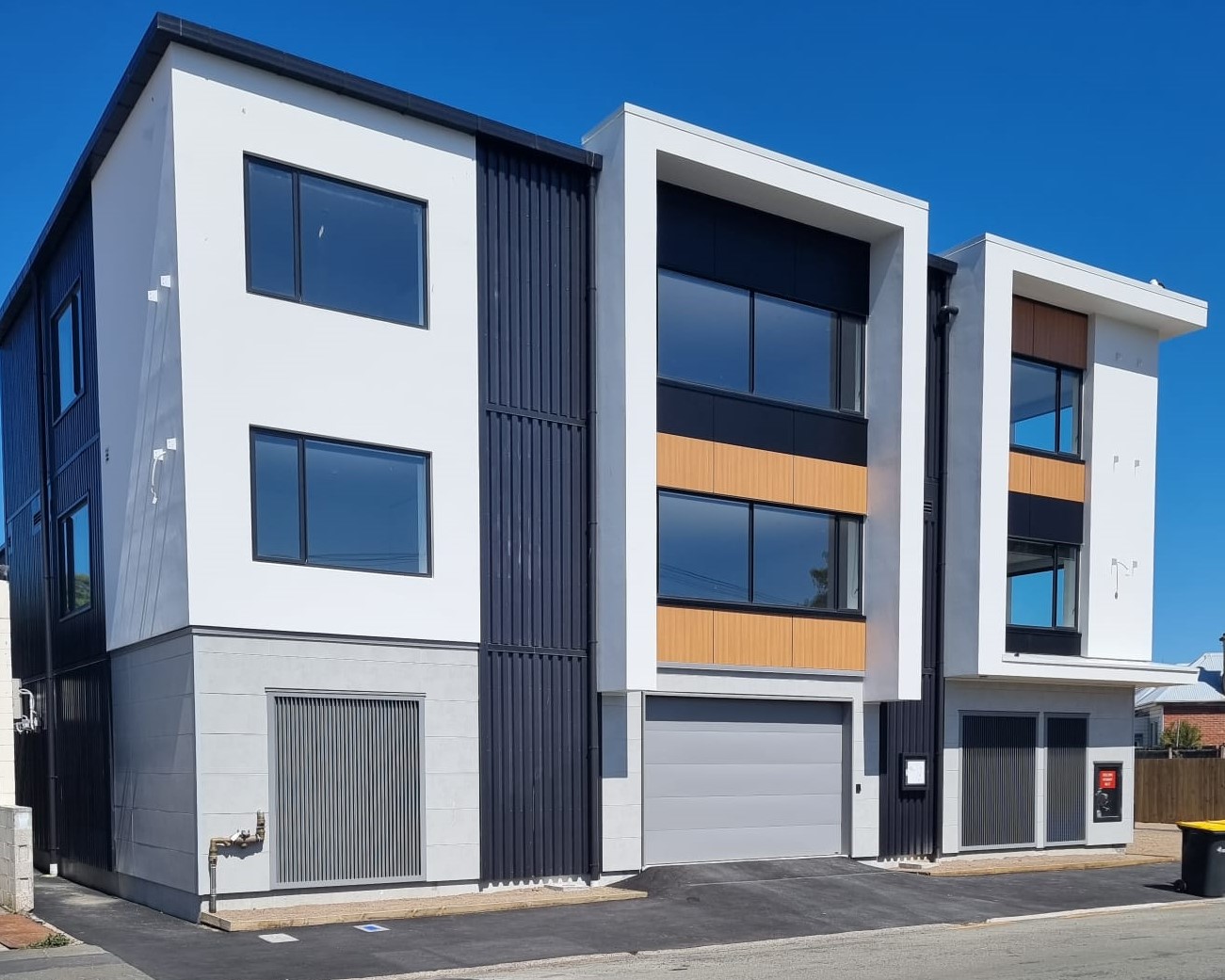

VL VF2 ANscombe
Specifications
Data Sheet
Compliance Documents
Revit
CAD
Case Studies
Specifications
Data Sheet
Compliance Documents
Revit
CAD
Case Studies
Dimensions

Depth: 101mm

Height: Minimum 100mm, Maximum 3000mm (panel modules can be spliced together to form larger louvres)

Width: Minimum 200mm, Maximum 3000mm (panel modules can be spliced together to form larger louvres)
Blade Centres

50mm
Rain Defence Performance (BS/EN 13030:2001)

Class A - up to 3.5m/s suction velocity


Aerodynamic Performance (BS/EN 13030:2001)

Air Inlet: 0.317, Class 2

Air Extract: 0.317, Class 2


Geometric Free Area (active blades only) 44%
Surface Finish Options

Powdercoated

Anodised

Raw Aluminium (Mill)
Perimeter Frame Options

Flanged Frame
Ancillaries Options

Bird Mesh

Insect Mesh

Solid Blanking

Perimeter Mounting Angle

VL-VF2 Data Sheet (PDF)

View

Ventilation Louvre Brochure

View

VL-VF2 BPIR Declaration

View

VL-VF2 Product Technical Statement

View

VL-VF2 Revit Family

VL-VF2_Installation Details (Weatherboard) DWG

VL-VF2_Installation Details (Weatherboard) PDF

View

VL-VF2_Installation Details (Horizontal Metal Cladding) DWG

VL-VF2_Installation Details (Horizontal Metal Cladding) PDF

View

VL-VF2_Installation Details (Window Mounting Angle) DWG

VL-VF2_Installation Details (Window Mounting Angle) PDF

View

VL-VF2_Installation Details (Brick Veneer) DWG

VL-VF2_Installation Details (Brick Veneer) PDF

View

VL-VF2_Installation Details (Vertical Metal Cladding) DWG

VL-VF2_Installation Details (Glazed In Flanged Frame) DWG

VL-VF2_Installation Details (Vertical Metal Cladding) PDF

View

VL-VF2_Installation Details (Glazed In Flanged Frame) PDF

View

VL-VF2_Installation Details (Fibre Cement) DWG

VL-VF2_Installation Details (Fibre Cement) PDF

View

VL-VF2_Product Sheet (Channel Frame) DWG

VL-VF2_Installation Details (Glazed In Commercial Frame) DWG

VL-VF2_Product Sheet (Channel Frame) PDF

View

VL-VF2_Installation Details (Glazed In Commercial Frame) PDF

View

VL-VF2_Installation Details (Precast Concrete Channel Frame) DWG

VL-VF2_Product Sheet (Glazed In Frame) DWG

VL-VF2_Installation Details (Precast Concrete Channel Frame) PDF

View

VL-VF2_Product Sheet (Glazed In Frame) PDF

View

VL-VF2_Installation Details (ACM Cladding) DWG

VL-VF2_Installation Details (ACM Cladding) PDF

View

VL-VF2_Installation Details (Precast Concrete Flanged Frame) DWG

VL-VF2_Product Sheet (Standard Frame) DWG

VL-VF2_Installation Details (Precast Concrete Flanged Frame) PDF

View

VL-VF2_Product Sheet (Standard Frame) PDF

View

One Willis Street

Read More
You can now find Ventüer products on Masterspec
View Here

Related Products

VL 3SD
Ultimate Weather Protection Louvre

Designed for superior rain protection, the VL-3SD features a three-stage blade system and a two-piece pressure-equalised mullion for effective water management. The shallow 150mm frame depth ensures easy integration into facades, and clip-fixed front blades allow for large-scale, uninterrupted louvre spans. This versatile system is ideal for applications in hospitals, data centres, and apartment buildings where both performance and design flexibility are essential.

read more
VL 2SD
High Weather Protection Louvre

The VL-2SD is a two-stage horizontal weather louvre designed for excellent rain defence and efficient water management. Supported by a two-piece pressure-equalised mullion system, it ensures reliable drainage and durability. The 150mm frame depth is optimized for compact installations, and the clip-fixed front blades enable seamless, large-scale louvre construction without visible mullions. Ideal for retail, apartments, industrial buildings, and offices, the VL-2SD provides robust performance in diverse applications.

read more

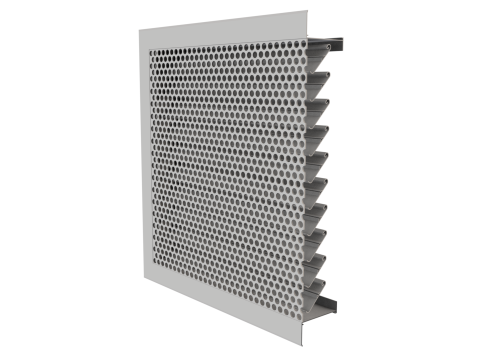

VL 50PL
