VL 77EX
VL-77EX

Maximum Airflow for Exhaust

The VL-77EX is designed specifically for exhaust applications, offering very low pressure loss to maximize airflow with minimal mechanical assistance. Its design prioritizes airflow performance over rain defence, making it ideal for use in sheltered environments, such as under canopies. Constructed from durable extruded aluminium, it provides reliable ventilation for mechanical systems where high rain protection is not required. Common applications include exhaust louvres in industrial and commercial settings.

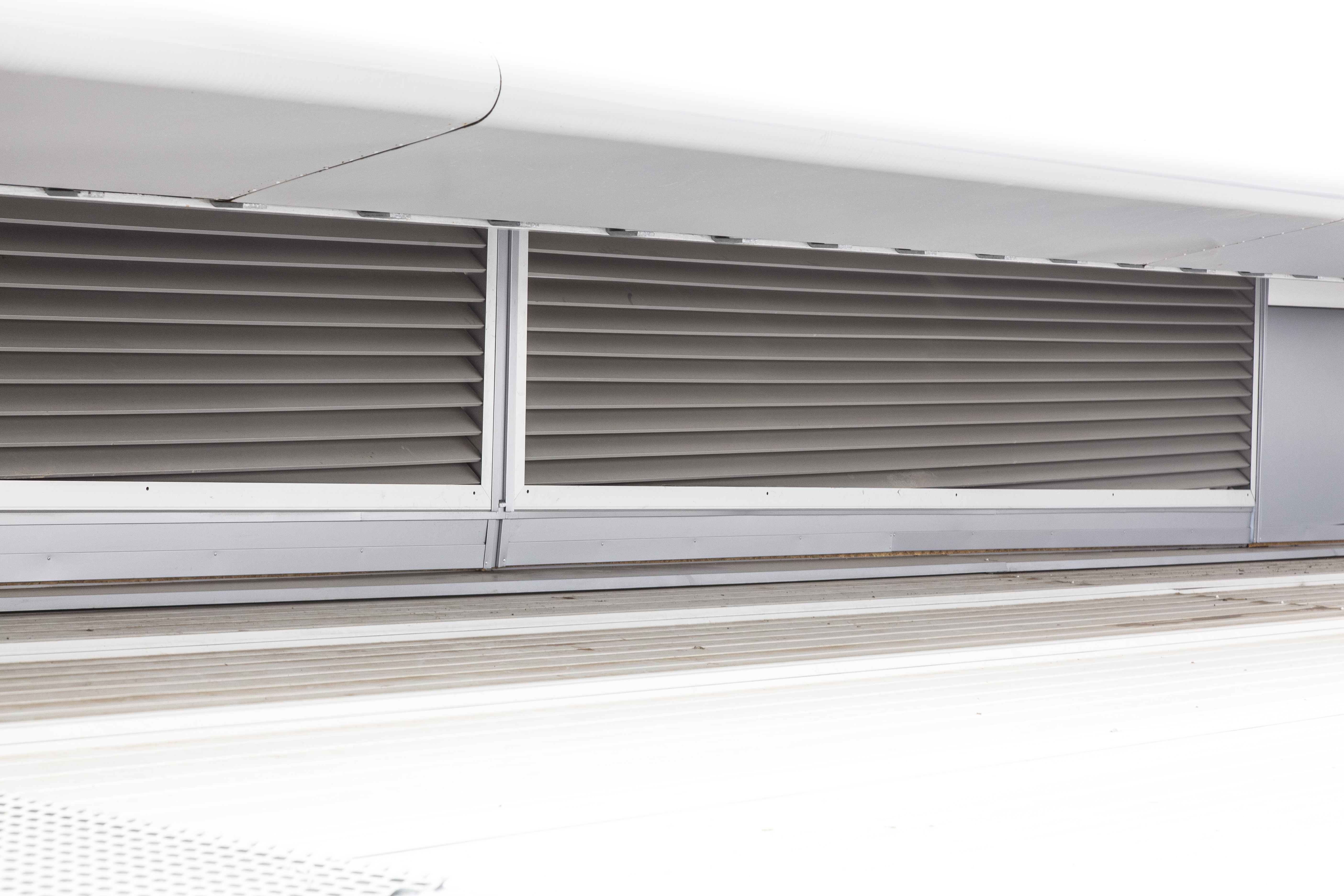

ZNVN 23

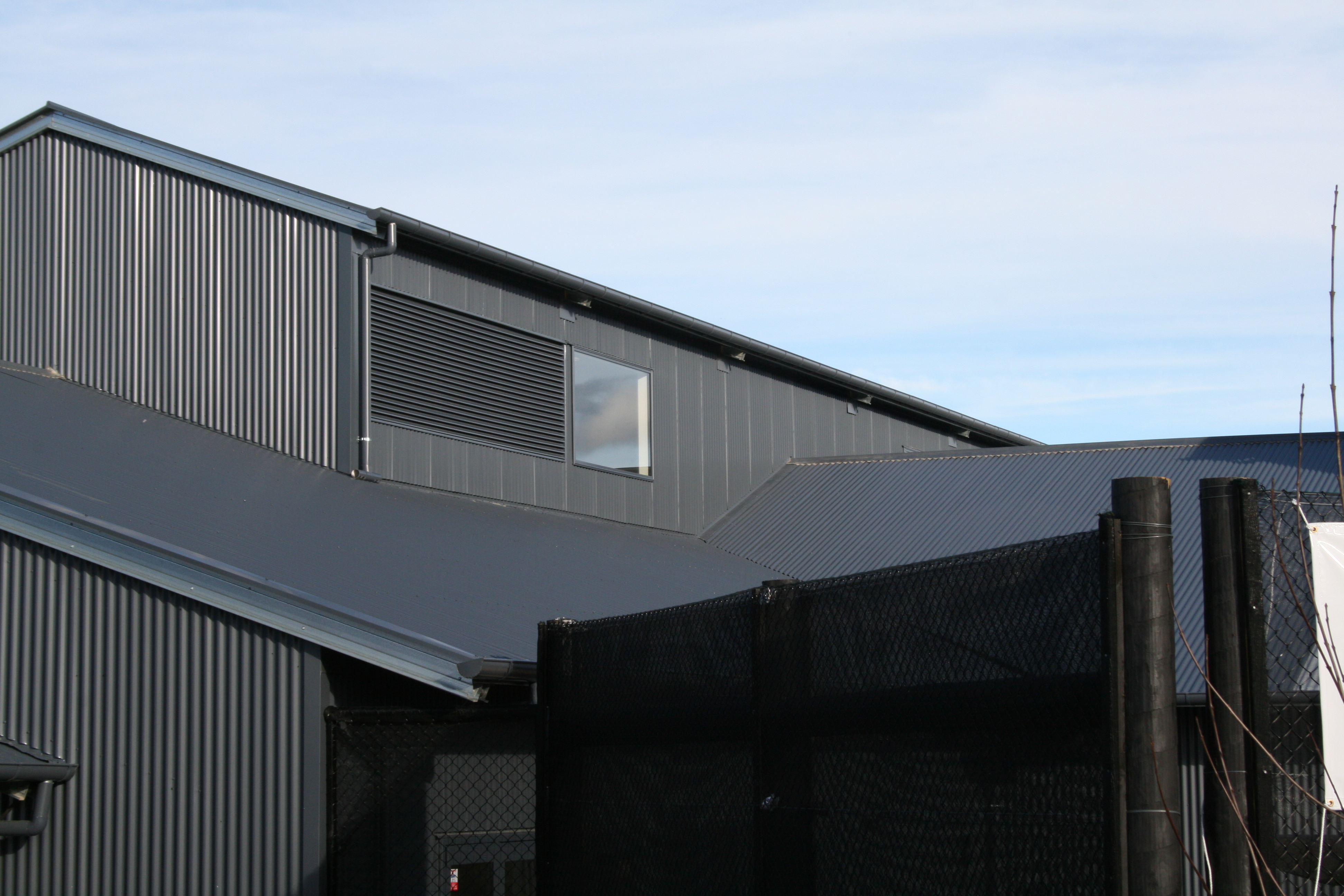

Nichols Cromwell ZNVN 3
Specifications
Data Sheet
Compliance Documents
Revit
CAD
Case Studies
Specifications
Data Sheet
Compliance Documents
Revit
CAD
Case Studies
Dimensions

Depth: 104.5mm

Height: Minimum 300mm, Maximum 3000mm (panel modules can be spliced together to form larger louvres)

Width: Minimum 200mm, Maximum 3000mm (panel modules can be spliced together to form larger louvres)
Blade Centres

77mm
Rain Defence Performance (BS/EN 13030:2001)

Class C - up to 0.5m/s suction velocity

Class D - up to 3.5m/s suction velocity


Aerodynamic Performance (BS/EN 13030:2001)

Air Inlet: 0.376, Class 2

Air Extract: 0.376, Class 2
Geometric Free Area (active blades only) 61%
Surface Finish Options

Powdercoated

Anodised

Raw Aluminium (Mill)
Perimeter Frame Options

Flanged Frame

Channel Frame
Ancillaries Options

Bird Mesh

Insect Mesh

Solid Blanking

Perimeter Mounting Angle

VL-77EX Data Sheet (PDF)

View

Ventilation Louvre Brochure

View

VL-77EX Test Certificate

View

Louvre Calculator

VL-77EX Specification

VL-77EX BPIR Declaration

View

VL-77EX Product Technical Statement

View

VL-77EX Revit Family

VL-77EX_Product Sheet (Channel Frame) PDF

View

VL-77EX_Installation Details (Brick Veneer) DWG

VL-77EX_Installation Details (Window Mounting Angle) DWG

VL-77EX_Installation Details (Glazed In Commercial Frame) PDF

View

VL-77EX_Installation Details (Precast With Flanged Frame) DWG

VL-77EX_Installation Details (Glazed In Flanged Frame) DWG

VL-77EX_Installation Details (Vertical Metal Cladding) PDF

View

VL-77EX_Product Sheet (Standard Frame) DWG

VL-77EX_Installation Details (Window Mounting Angle) PDF

View

VL-77EX_Installation Details (Horizontal Metal Cladding) DWG

VL-77EX_Installation Details (ACM Cladding) DWG

VL-77EX_Installation Details (Precast With Flanged Frame) PDF

View

VL-77EX_Installation Details (Brick Veneer) PDF

View

VL-77EX_Product Sheet (Glazed In Frame) DWG

VL-77EX_Product Sheet (Standard Frame) PDF

View

VL-77EX_Installation Details (Weatherboard) DWG

VL-77EX_Installation Details (Horizontal Metal Cladding) PDF

View

VL-77EX_Installation Details (ACM Cladding) PDF

View

VL-77EX_Product Sheet (Channel Frame) DWG

VL-77EX_Product Sheet (Glazed In Frame) PDF

View

VL-77EX_Installation Details (Fibre Cement) DWG

VL-77EX_Installation Details (Glazed In Commercial Frame) DWG

VL-77EX_Installation Details (Fibre Cement) PDF

View

VL-77EX_Installation Details (Weatherboard) PDF

View

VL-77EX_Installation Details (Vertical Metal Cladding) DWG

VL-77EX_Installation Details (Precast With Channel Frame) PDF

View

VL-77EX_Installation Details (Precast With Channel Frame) DWG

VL-77EX_Installation Details (Glazed In Flanged Frame) PDF

View

VL-77EX_Installation Details (Fire Damper) DWG

VL-77EX_Installation Details (Aluminium Single Door) PDF

View

VL-77EX_Installation Details (Aluminium Double Door) PDF

View

VL-77EX_Installation Details (Aluminium Single Door) DWG

VL-77EX_Installation Details (Fire Damper) PDF

View

VL-77EX_Installation Details (Aluminium Double Door) DWG
