VL-104D

Drainable Single Bank Louvre

Designed for reliable rain defence, the VL-104D features a single bank drainable blade system with vertical gutters integrated into a flanged perimeter frame. This efficient design ensures water is directed away from the blades and ejected to the panel's front. Constructed from extruded aluminium, it supports both intake and exhaust ventilation, making it ideal for plant rooms, schools, commercial, and industrial applications.

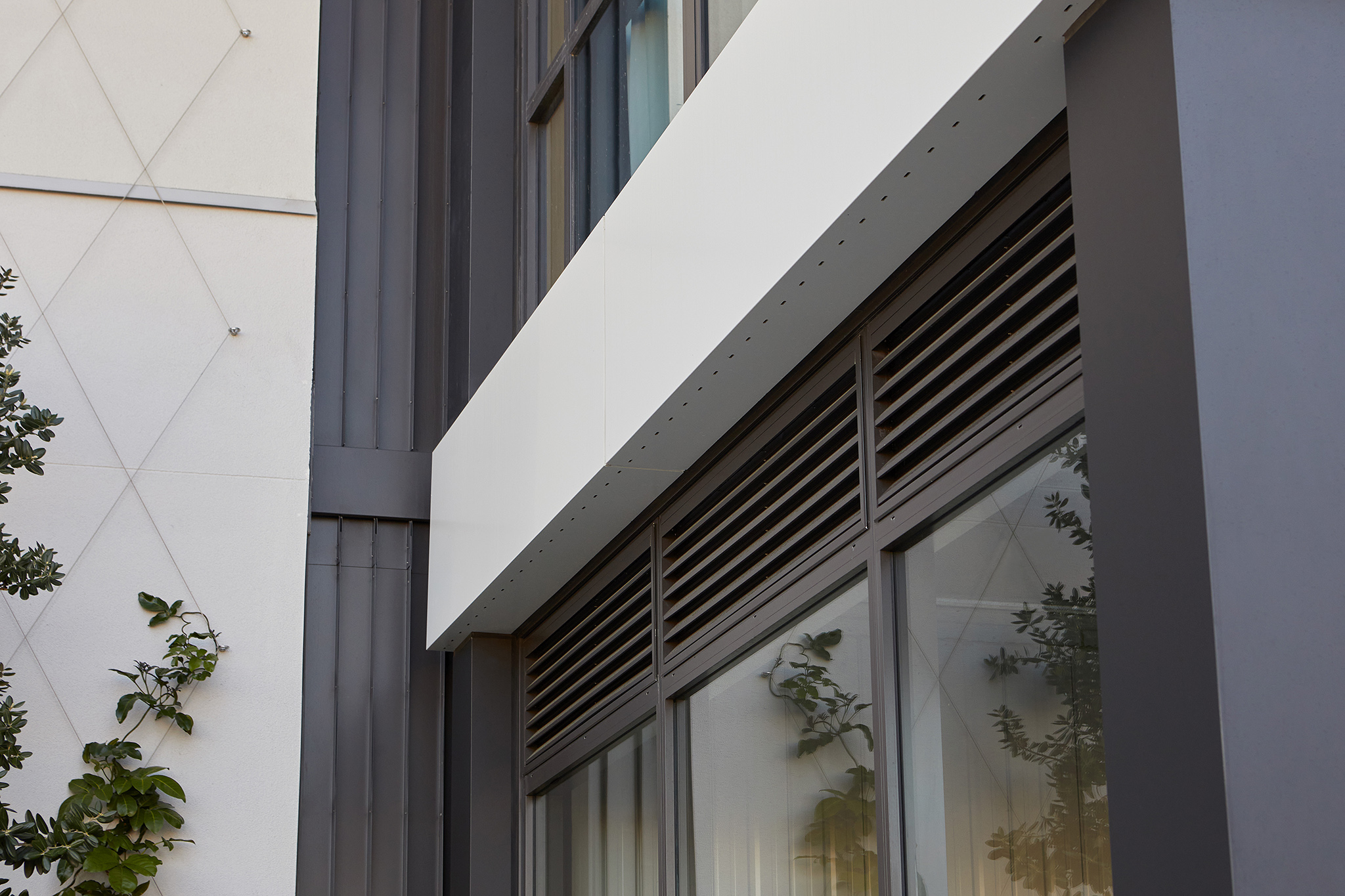

MaddenSt 019

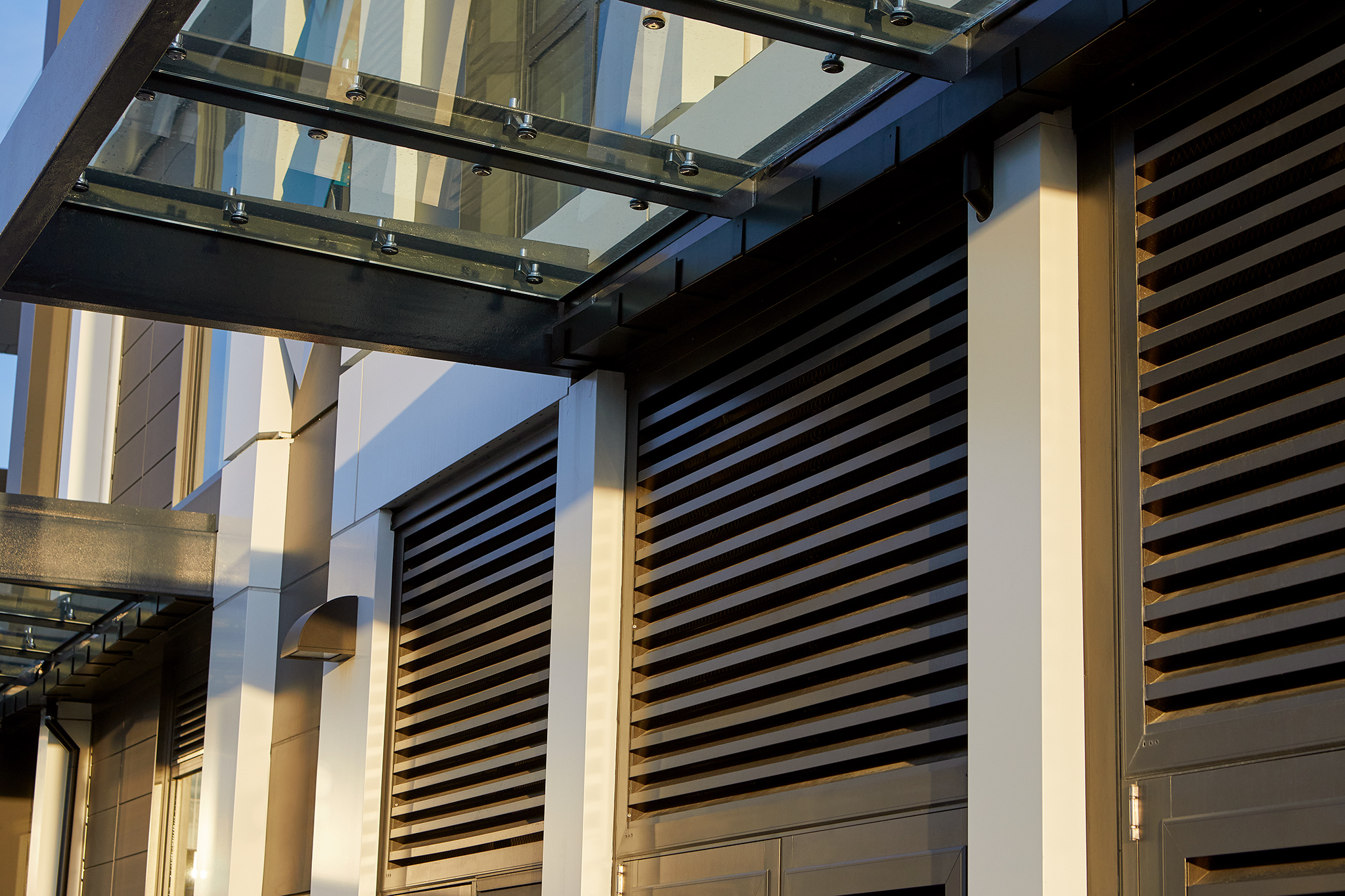

MaddenSt 354

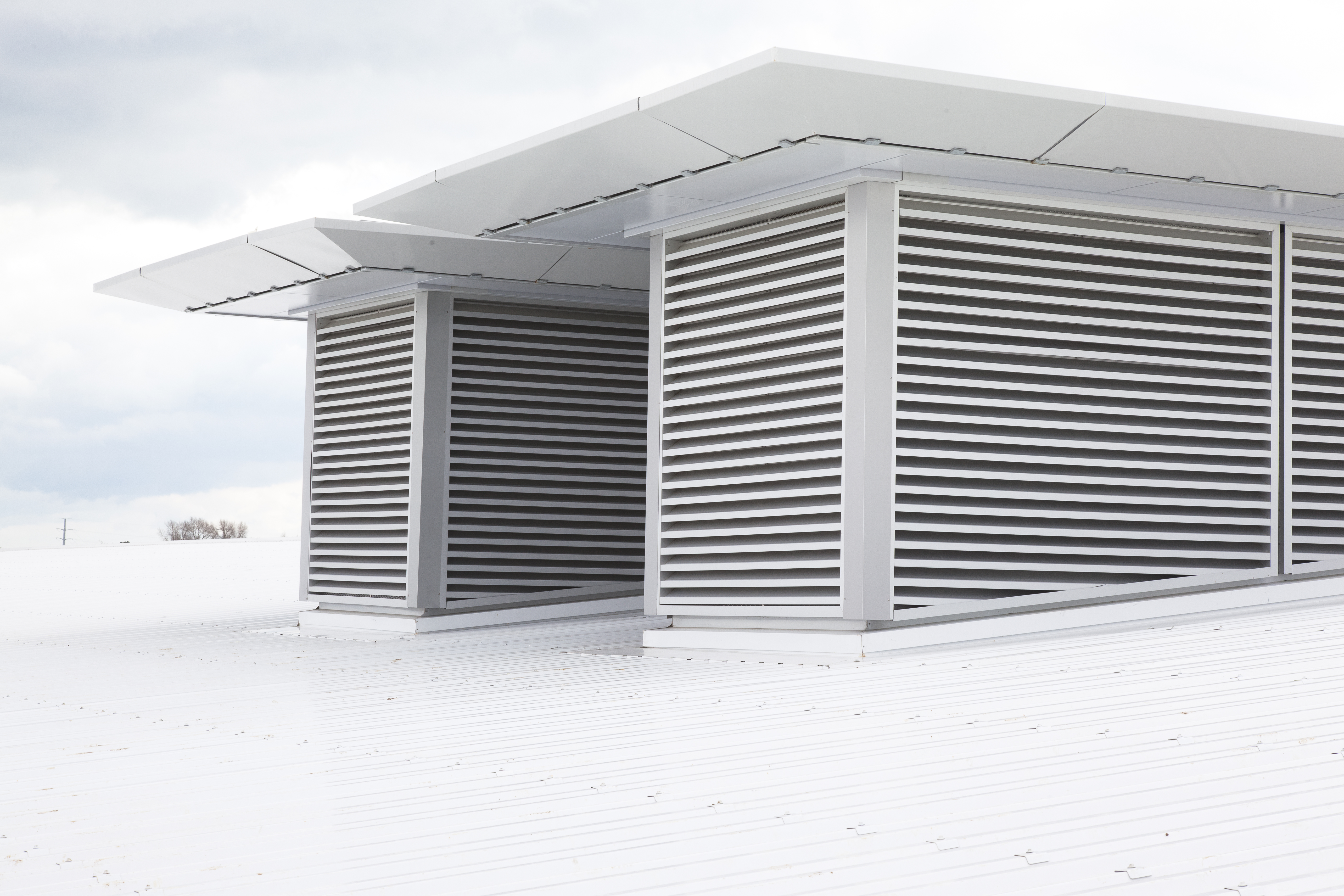

ZNVN 3

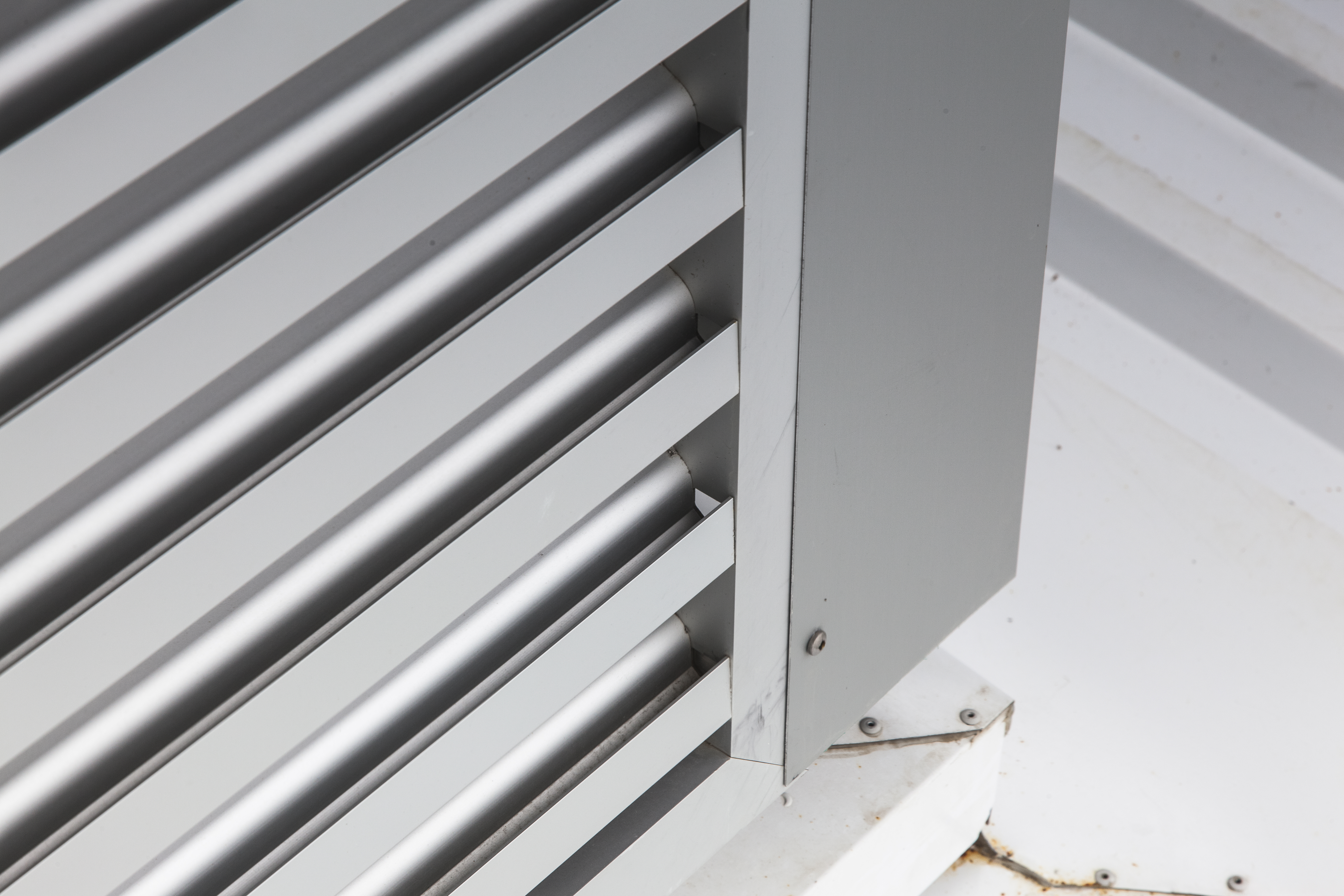

ZNVN 9
BlakeSt 084 HR
Specifications
Data Sheet
Compliance Documents
Revit
CAD
Case Studies
Specifications
Data Sheet
Compliance Documents
Revit
CAD
Case Studies
Dimensions

Depth: 104.5mm

Height: Minimum 300mm, Maximum 3000mm (panel modules can be spliced together to form larger louvres)

Width: Minimum 200mm, Maximum 3000mm (panel modules can be spliced together to form larger louvres)
Blade Centres

77mm
Rain Defence Performance (BS/EN 13030:2001)

Class C - up to 1.0m/s suction velocity

Class D - up to 3.5m/s suction velocity
Aerodynamic Performance (BS/EN 13030:2001)

Air Inlet: 0.317, Class 2

Air Extract: 0.317, Class 2


Geometric Free Area (active blades only) 60%
Surface Finish Options

Powdercoated

Anodised

Raw Aluminium (Mill)
Perimeter Frame Options

Flanged Frame

Channel Frame
Ancillaries Options

Bird Mesh

Insect Mesh

Solid Blanking

Perimeter Mounting Angle

VL-104D Data Sheet (PDF)

View

VL-104D Deflections & Spans Sheet

View

VL-104D Mid-Span Support Bar Spacing

View

Ventilation Louvre Brochure

View

Louvre Calculator

VL-104D Specification

VL-104D BPIR Declaration

View

VL-104D Product Technical Statement

View

VL-104D Revit Family

VL-104D_Installation Details (ACM Cladding) DWG

VL-104D_Installation Details (Horizontal Metal Cladding) PDF

View

VL-104D_Installation Details (Weatherboard) PDF

View

VL-104D_Product Sheet (Glazed In Frame) DWG

VL-104D_Product Sheet (Standard Frame) PDF

View

VL-104D_Installation Details (Fibre Cement) DWG

VL-104D_Installation Details (Glazed In Commercial Frame) DWG

VL-104D_Installation Details (Precast With Flanged Frame) PDF

View

VL-104D_Installation Details (ACM Cladding) PDF

View

VL-104D_Product Sheet (Channel Frame) DWG

VL-104D_Installation Details (Precast With Channel Frame) DWG

VL-104D_Product Sheet (Glazed In Frame) PDF

View

VL-104D_Installation Details (Precast With Channel Frame) PDF

View

VL-104D_Installation Details (Glazed In Flanged Frame) DWG

VL-104D_Installation Details (Glazed In Commercial Frame) PDF

View

VL-104D_Installation Details (Vertical Metal Cladding) DWG

VL-104D_Installation Details (Brick Veneer) DWG

VL-104D_Product Sheet (Channel Frame) PDF

View

VL-104D_Installation Details (Fibre Cement) PDF

View

VL-104D_Installation Details (Window Mounting Angle) DWG

VL-104D_Installation Details (Glazed In Flanged Frame) PDF

View

VL-104D_Installation Details (Horizontal Metal Cladding) DWG

VL-104D_Installation Details (Weatherboard) DWG

VL-104D_Installation Details (Vertical Metal Cladding) PDF

View

VL-104D_Installation Details (Brick Veneer) PDF

View

VL-104D_Product Sheet (Standard Frame) DWG

VL-104D_Installation Details (Window Mounting Angle) PDF

View

VL-104D_Installation Details (Precast With Flanged Frame) DWG

VL-104D_Installation Details (Aluminium Double Door) DWG

VL-104D_Installation Details (Penthouse) PDF

View

VL-104D_Installation Details (Penthouse) DWG

VL-104D_Installation Details (Fire Damper) PDF

View

VL-104D_Installation Details (Fire Damper) DWG

VL-104D_Installation Details (Aluminium Single Door) PDF

View

VL-104D_Installation Details (Aluminium Single Door) DWG

VL-104D_Installation Details (Aluminium Double Door) PDF

View

Blake Street Apartments

Read More

Te Atatu Peninsular Library & Community Centre

Read More

Safe Storage Westgate

Read More

30 Madden Street

Read More

Fisher & Paykel Healthcare

Read More
You can now find Ventüer products on Masterspec
View Here

Related Products

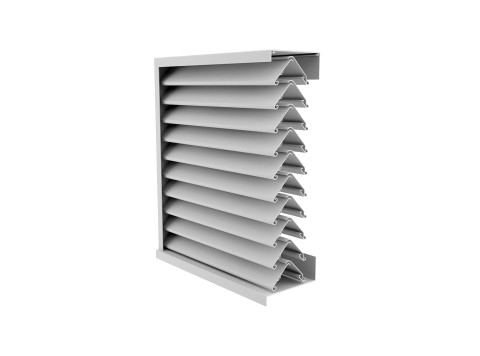

VL 2SD
High Weather Protection Louvre

The VL-2SD is a two-stage horizontal weather louvre designed for excellent rain defence and efficient water management. Supported by a two-piece pressure-equalised mullion system, it ensures reliable drainage and durability. The 150mm frame depth is optimized for compact installations, and the clip-fixed front blades enable seamless, large-scale louvre construction without visible mullions. Ideal for retail, apartments, industrial buildings, and offices, the VL-2SD provides robust performance in diverse applications.

read more

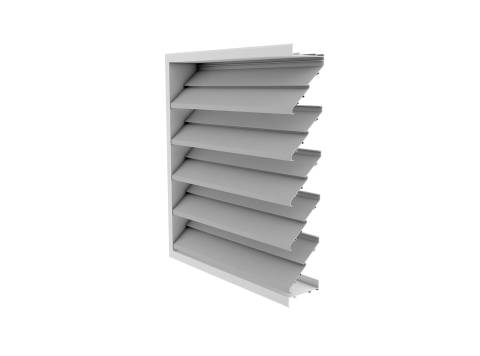

VL 100S
