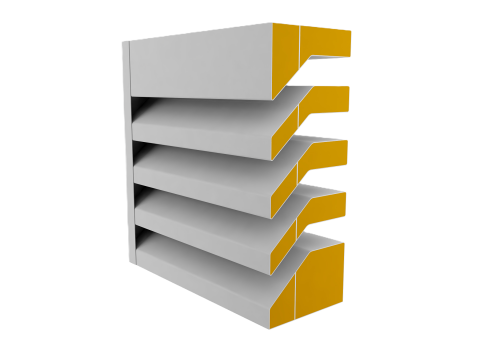

The AL-300W provides an Rw rating of 16 dB and excellent rain defence. At a compact 300mm deep, it is ideal for stadiums, industrial sites, and plant rooms.
| Dimensions |
Depth: 300mm Height: Minimum 450mm, Maximum 2400mm (panel modules can be spliced together to form larger louvres) Width: Minimum 300mm, Maximum 2400mm (panel modules can be spliced together to form larger louvres)
|
| Blade Centres |
150mm
|
|
(Click Here To Download Acoustic Test Report)
|
|
| Rain Defence Performance (BS/EN 13030:2001) |
Class A - up to 0.5m/s suction velocity Class B - up to 1.5m/s suction velocity Class C - up to 2.0m/s suction velocity Class D - up to 3.5m/s suction velocity
|
| Aerodynamic Performance (BS/EN 13030:2001) |
Air Inlet: 0.202, Class 3 Air Extract: 0.229, Class 3
|
| Geometric Free Area (active blades only) |
30%
|
| Surface Finish Options |
Powdercoated Anodised Raw Aluminium (Mill)
|
| Perimeter Frame Options |
Channel Frame Flanged Frame
|
| Ancillaries Options |
Bird Mesh Insect Mesh Solid Blanking Perimeter Mounting Angle
|
AL-300W_Installation Details (Weatherboard) PDF
AL-300W_Installation Details (Horizontal Metal Cladding) PDF
AL-300W_Installation Details (ACM Cladding) PDF
AL-300W_Installation Details (Precast) PDF
AL-300W_Installation Details (Window Mounting Angle) PDF
AL-300W_Installation Details (Fibre Cement) PDF
AL-300W_Installation Details (Vertical Metal Cladding) PDF
AL-300W_Installation Details (Brick Veneer) PDF
AL-300W_Product Sheet (Standard Frame) PDF
AL-300W_Installation Details (Aluminium Single Door) PDF
AL-300W_Installation Details (Penthouse) PDF
AL-300W_Installation Details (Aluminium Double Door) PDF
AL-300W_Installation Details (Fire Damper) PDF
