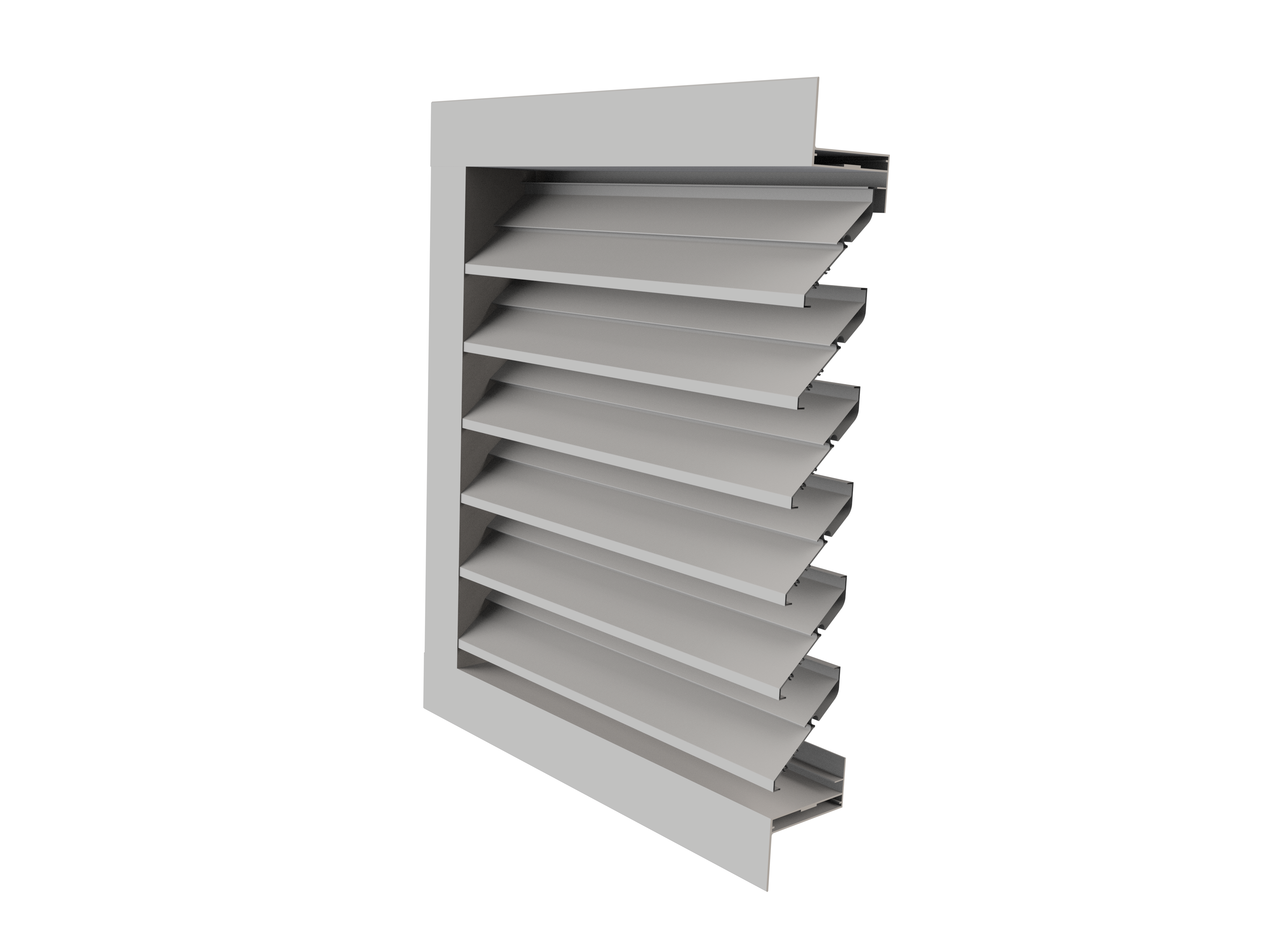

Open

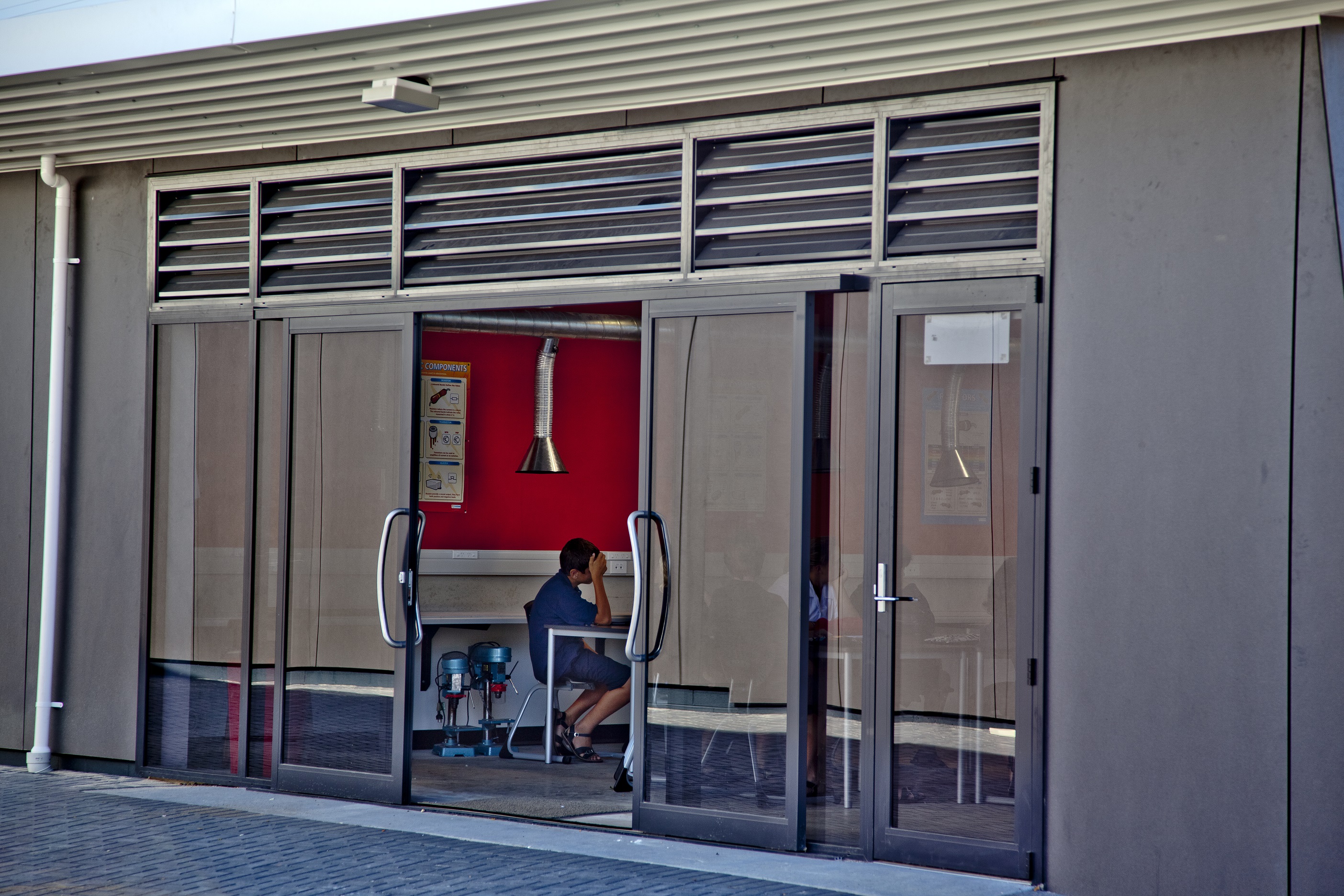

OL-100S

Operable Twin Weatherstop Louvre

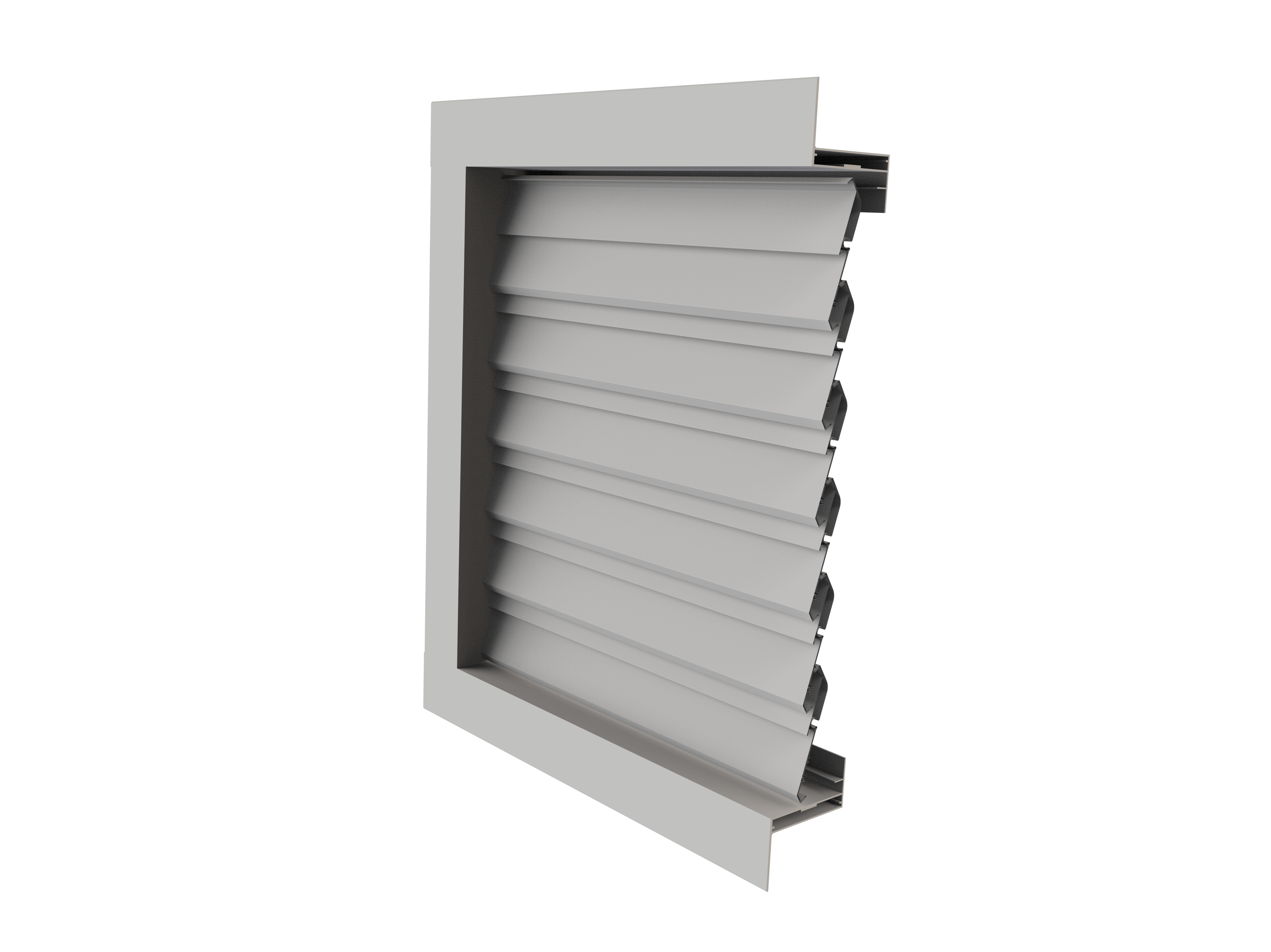

Designed for demanding environments, the OL-100S is an operable louvre system that provides adjustable airflow and exceptional weather protection. Featuring twin weather stop blades with rubber seals, it ensures maximum rain defence when closed. The system can be operated manually or electrically, offering versatility for different applications. Its strong blade profile is capable of withstanding long spans and high wind loads, making it a reliable choice for gymnasiums, indoor pools, stadiums, and factories.

Specifications
Data Sheet
Revit
CAD
Dimensions

Depth: 115mm

Height: Minimum 300mm, Maximum 3000mm (panel modules can be spliced together to form larger louvres)

Width: Minimum 400mm, Maximum 3000mm (panel modules can be spliced together to form larger louvres)

Blade Centres

100mm

Rain Defence Performance (BS/EN 13030:2001)

Class B - up to 0.5m/s suction velocity

Class C - up to 1.5m/s suction velocity

Class D - up to 3.5m/s suction velocity

Aerodynamic Performance (BS/EN 13030:2001)

Air Inlet: 0.244, Class 3

Air Extract: 0.255, Class 3



Geometric Free Area (active blades only) 47%
Surface Finish Options

Powdercoated

Anodised

Perimeter Frame Options

Flanged Frame

Ancillaries Options

Bird Mesh

Insect Mesh

Solid Blanking

Electric Actuators

Manual Lever Handles

Perimeter Mounting Angle

OL-100S Data Sheet (PDF)

Ventilation Louvre Brochure

OL-100S Test Certificate

OL-100S Revit Family

OL-100S_Installation Details (Fibre Cement) PDF

OL-100S_Installation Details (Weatherboard) DWG

OL-100S_Installation Details (Vertical Metal Cladding) PDF

OL-100S_Installation Details (Horizontal Metal Cladding) DWG

OL-100S_Installation Details (Weatherboard) PDF

OL-100S_Installation Details (ACM Cladding) DWG

OL-100S_Installation Details (Horizontal Metal Cladding) PDF

OL-100S_Installation Details (Precast) DWG

OL-100S_Installation Details (ACM Cladding) PDF

OL-100S_Installation Details (Window Mounting Angle) DWG

OL-100S_Installation Details (Precast) PDF

OL-100S_Installation Details (Fibre Cement) DWG

OL-100S_Installation Details (Window Mounting Angle) PDF

OL-100S_Product Sheet (Standard Frame) DWG

OL-100S_Installation Details (Brick Veneer) PDF

OL-100S_Installation Details (Brick Veneer) DWG

OL-100S_Product Sheet (Standard Frame) PDF

OL-100S_Installation Details (Vertical Metal Cladding) DWG
