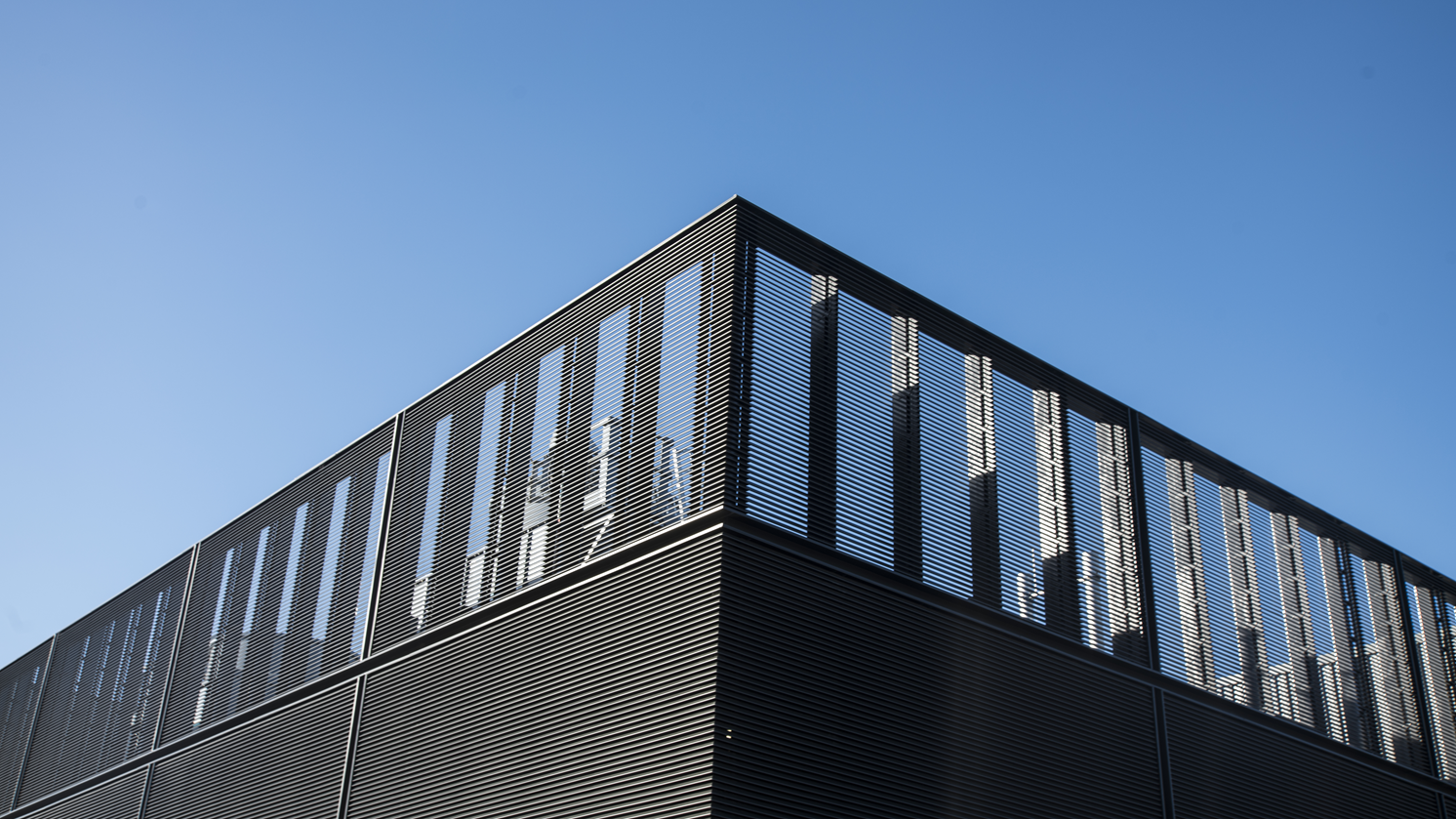

The VL-50CM is a 50mm fine-bladed screening louvre that shares the same frame and concealed mullion system as the high-performing VL-2SD and VL-3SD products. While it is not designed for high rain defence, it features a low-pressure drop and is ideal for applications such as plant screens, exhaust louvres, and inactive sections of double and triple bank systems. Its design allows for large, seamless louvre banks without visible support structures, making it a cost-effective and visually consistent solution for apartments, offices, and plant enclosures.
| Dimensions |
Depth: 150mm Height: Minimum 300mm, No Maximum Height (panels larger than 2500mm high will be delivered kitset to site) Width: Minimum 200mm, No Maximum Width (panels larger than 3000mm wide will be delivered kitset to site) |
| Blade Centres |
50mm |
| Rain Defence Performance (BS/EN 13030:2001) |
Class C - up to 1.0m/s suction velocity Class D - up to 3.5m/s suction velocity
|
| Aerodynamic Performance (BS/EN 13030:2001) |
Air Inlet: 0.332, Class 2 Air Extract: 0.389, Class 2
|
| Geometric Free Area (active blades only) | 48% |
| Surface Finish Options |
Powdercoated Anodised Raw Aluminium (Mill) |
| Perimeter Frame Options |
Channel Frame Flanged Frame Frameless |
| Ancillaries Options |
Bird Mesh Insect Mesh Solid Blanking Perimeter Mounting Angle |
