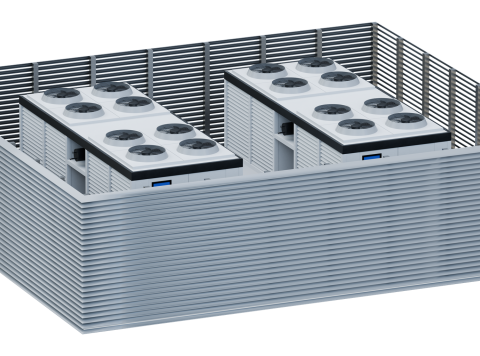

Mesh screen walls provide a lightweight, visually open way to screen rooftop plant and building services. Available in swaged grating and expanded mesh options, systems can range from a more refined architectural finish through to a textured industrial appearance.
| Mesh Options |
(Multiple mesh configurations are available, refer to the product data sheet for standard options) |
| Materials |
Aluminium |
| Surface Finish Options |
|
| Support Structure |
For smaller screen walls, Ventuer can provide a complete system including integrated support framing. For larger installations, screen walls are typically supplied with secondary support framing designed to fix back to the project primary structure by others. |
| Dimensions |
Mesh screen walls can be constructed to suit projects of virtually any overall size. Individual module dimensions are typically determined by site access, handling and installation constraints. Maximum module sizes vary depending on mesh type, wind loading and support requirements. |
| Free Area |
Free area ranges between 60% - 80% depending on mesh type selected. |
| Weight |
Typical system weight ranges from 15kg/m² to 30kg/m² depending on perforation pattern, aluminium thickness and support requirements. |
