Acoustic Louvre Screen Walls

Acoustic Louvre Screens

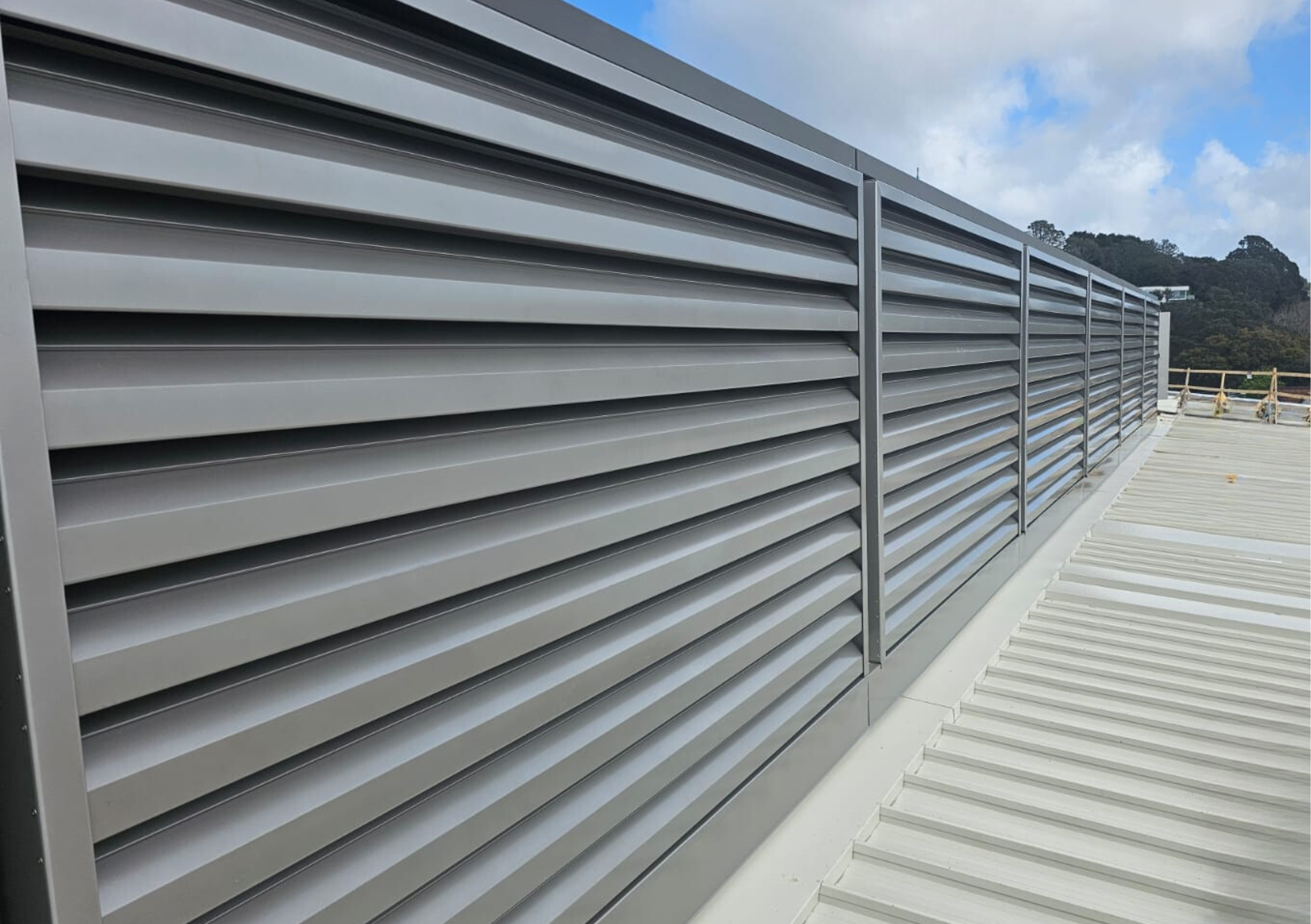

Designed for projects requiring both noise reduction and ventilation, Ventuer
acoustic louvre screens allow airflow to rooftop plant, mechanical equipment
and building services while helping reduce noise. Available in single-sided and double-sided configurations, systems can be engineered to suit project-specific acoustic, ventilation and architectural requirements.

Blade Options	Continuous single-sided blades Continuous double-sided blades Modular acoustic louvre panels (150mm, 300mm, 450mm & 600mm deep louvres available)
Materials	Extruded aluminium louvre blades with mineral wool acoustic core
Acoustic Performance	600mm deep louvre: Rw 22dB 450mm deep louvre: Rw 20dB 300mm deep louvre: Rw 17dB 150mm deep louvre: Rw 12dB Double-sided continuous blades: Rw 18dB Single-sided continous blades: Rw 12dB (refer data sheet for full acoustic properties)
Surface Finish Options	Powdercoated Anodised
Blade Orientation	Vertical Horizontal
Support Structure	For smaller screen walls, Ventuer can provide a complete system including integrated support framing. For larger installations, screen walls are typically supplied with secondary support framing designed to fix back to the project primary structure by others.
Visual Free Area	57%
Geometric Free Area	30%
Weight	600mm deep louvre: 100 kg/m2 450mm deep louvre: 85 kg/m2 300mm deep louvre: 60 kg/m2 150mm deep louvre: 32 kg/m2 Double-sided continuous blades: 60 kg/m2 Single-sided continous blades: 32 kg/m2
Dimensions	Continuous blade screens can be constructed to suit screen walls of virtually any overall size, with maximum individual blade lengths of up to 6000mm. Modular louvre panel dimensions are typically determined by site access, handling and installation constraints. Frameless panel options are available to minimise visible structure and create a more continuous appearance.
