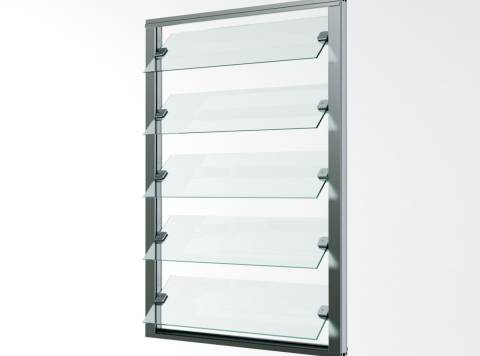

Single-glazed overlapping louvre blades with slim side glass fixings. The Ventuer HAHN-S9 louvre window has been developed for optimized, controlled ventilation. It combines good weather tightness with attractive architectural effect when insulated glazing is not necessary.
| Profiles |
Window Frame: Aluminium, non-thermally broken Louvre Blade Frame: (semi-frameless) |
| Dimensions |
Frame Width: Minimum 250mm, Maximum 1600mm Frame Height: Minimum 200mm, No Maximum Height (large panels are spliced together) Frame Depth: 46mm Louvre Blade Height: Minimum 150mm, Maximum 350mm |
| Maximum Blade Opening Angle | 84° |
| Glazing |
Glazing: Single glass Glass thickness: 8 / 10 / 12mm Glass types: Toughened, Laminated Alternative infill types: Timber, aluminium, stone panels |
| Control Options |
Manual Lever Handle Electric Actuator |
| Surface Finish Options |
RAL Powdercoat Colours Anodised |
| Performance Certifications | |
| CE certified (EN 12101-2) | Smoke vent |
| Aerodynamic Performance Cv | 0.65 |
| Air permeability (EN 12207) | Class 2 |
| Watertightness (EN 12208) | Class 3A |
| Resistance against wind load (EN 12210) | Certified |
HAHN-S9 Product Technical Statement

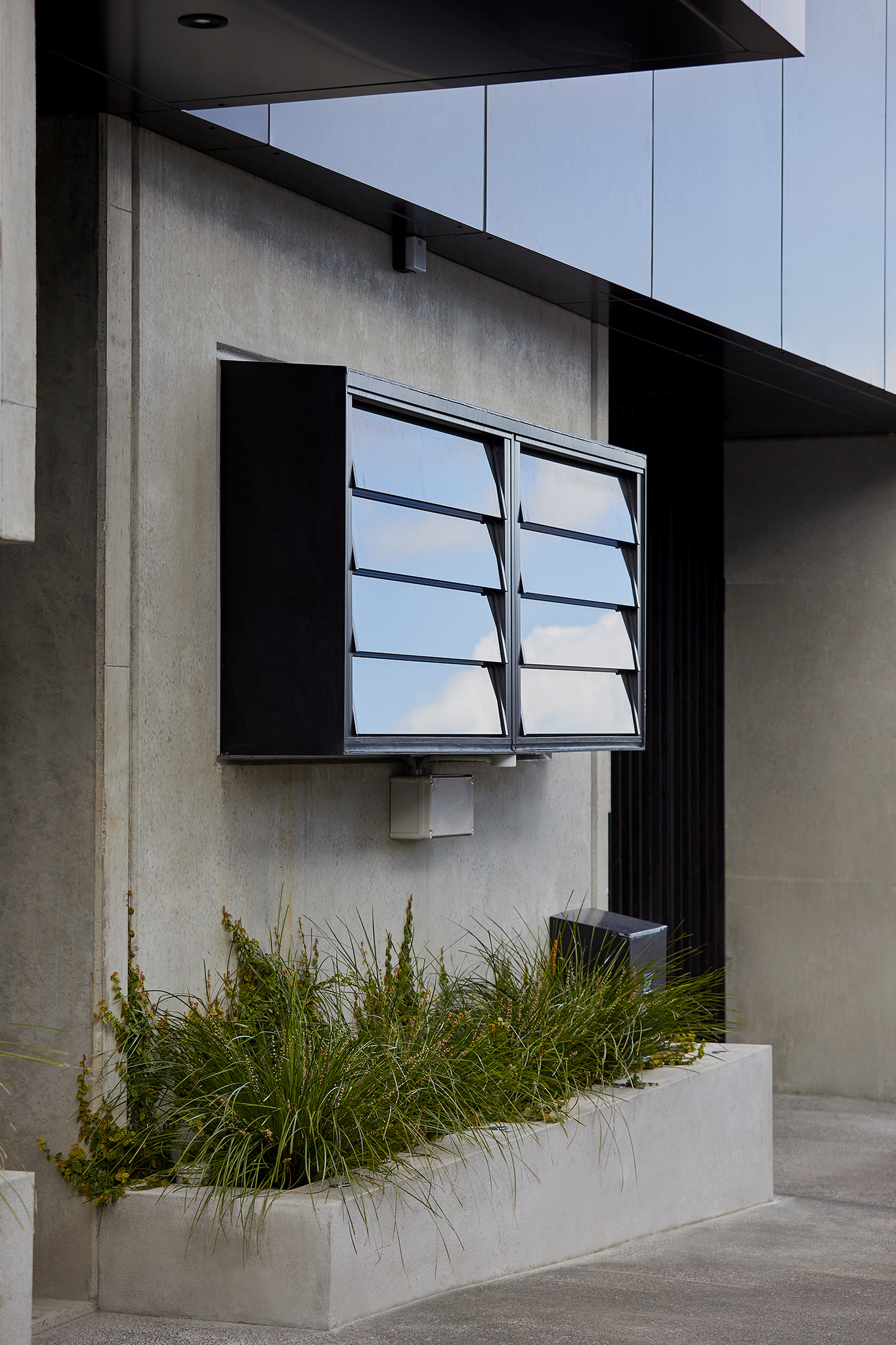

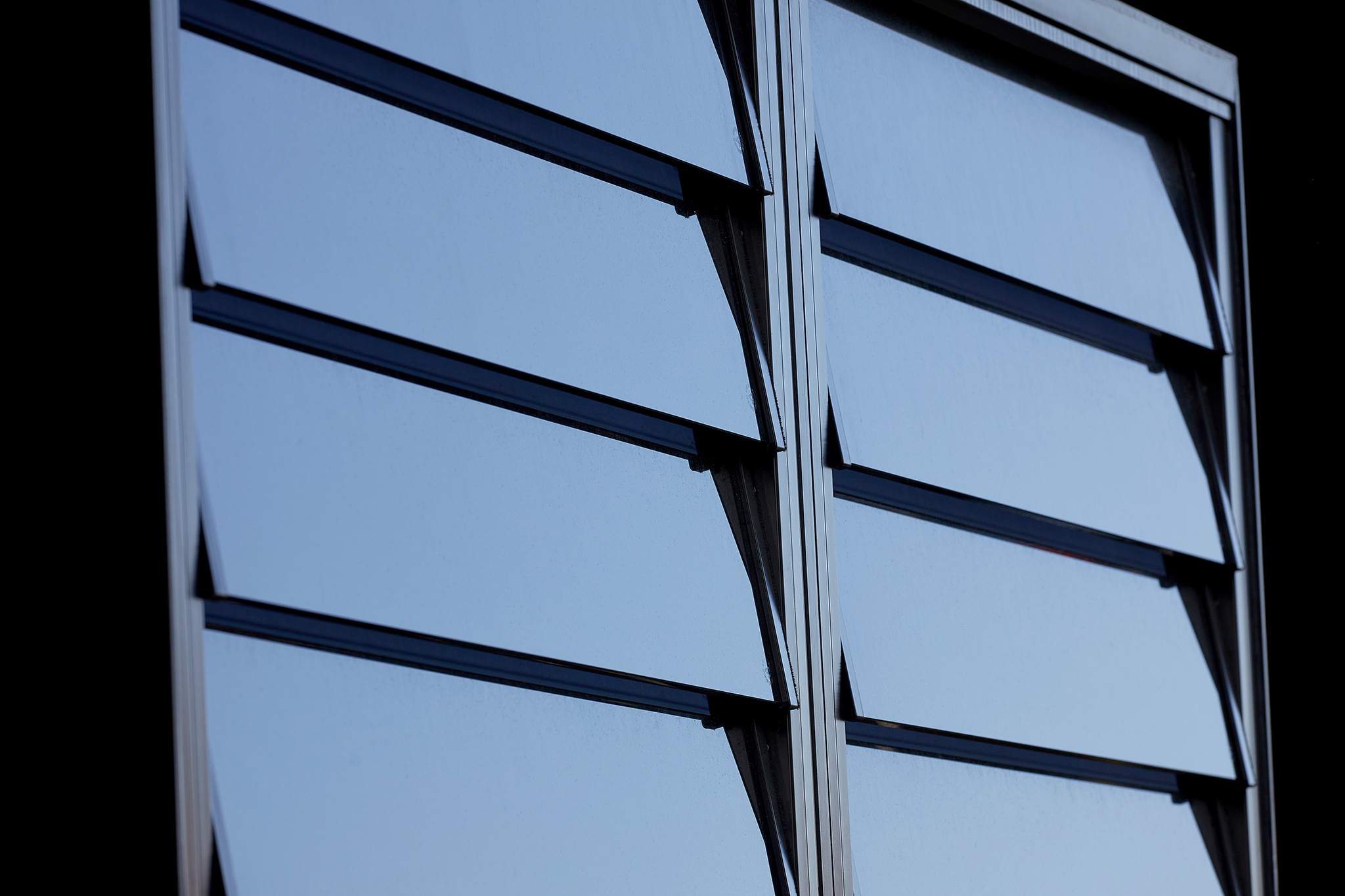

Blake Street Apartments
