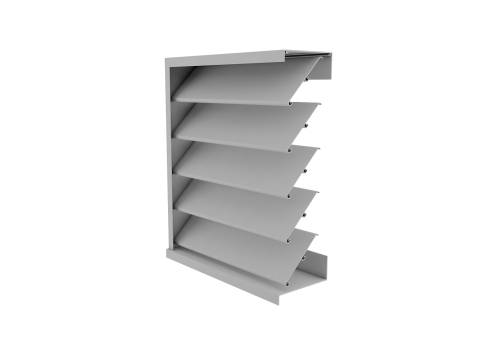

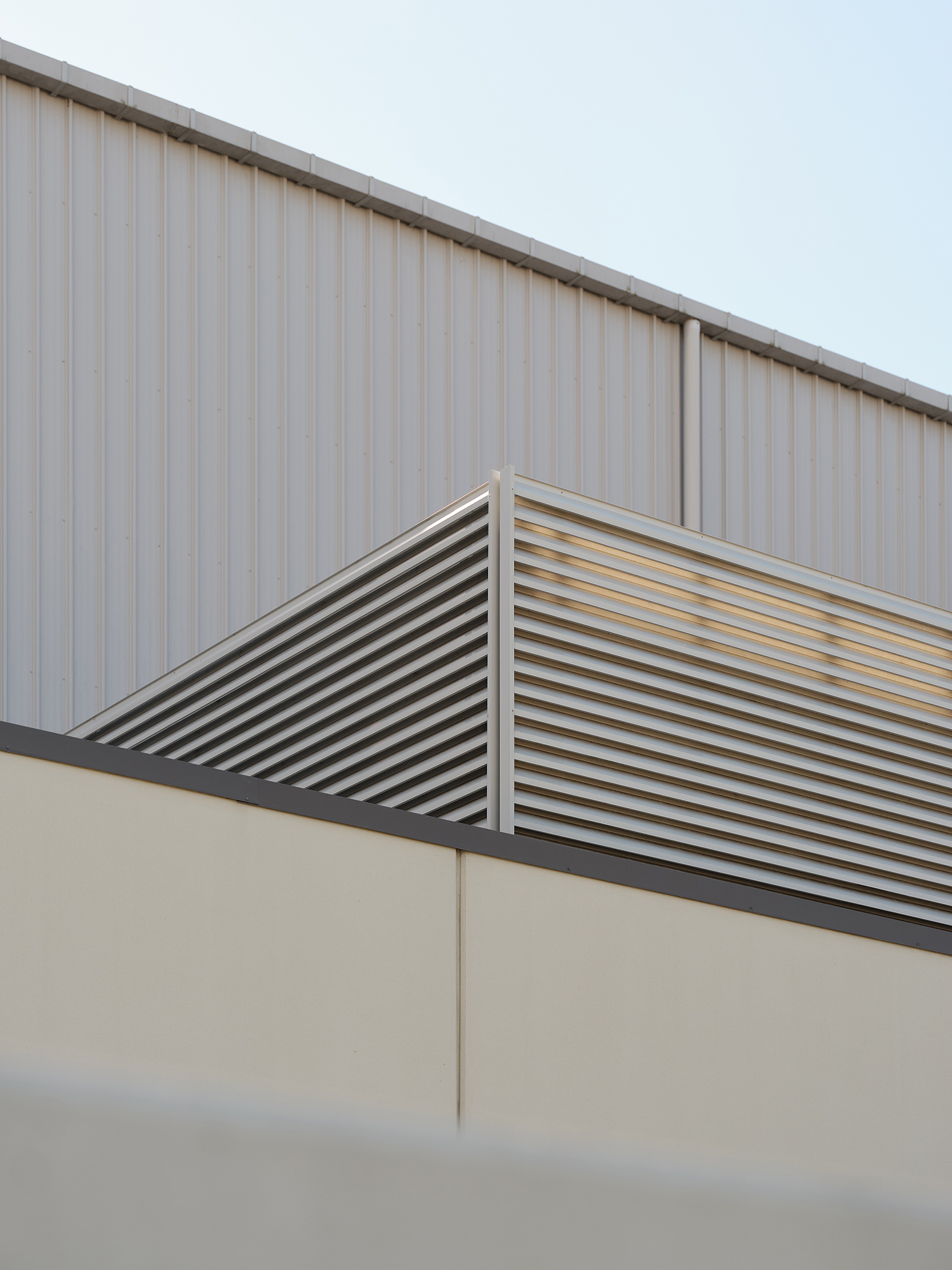

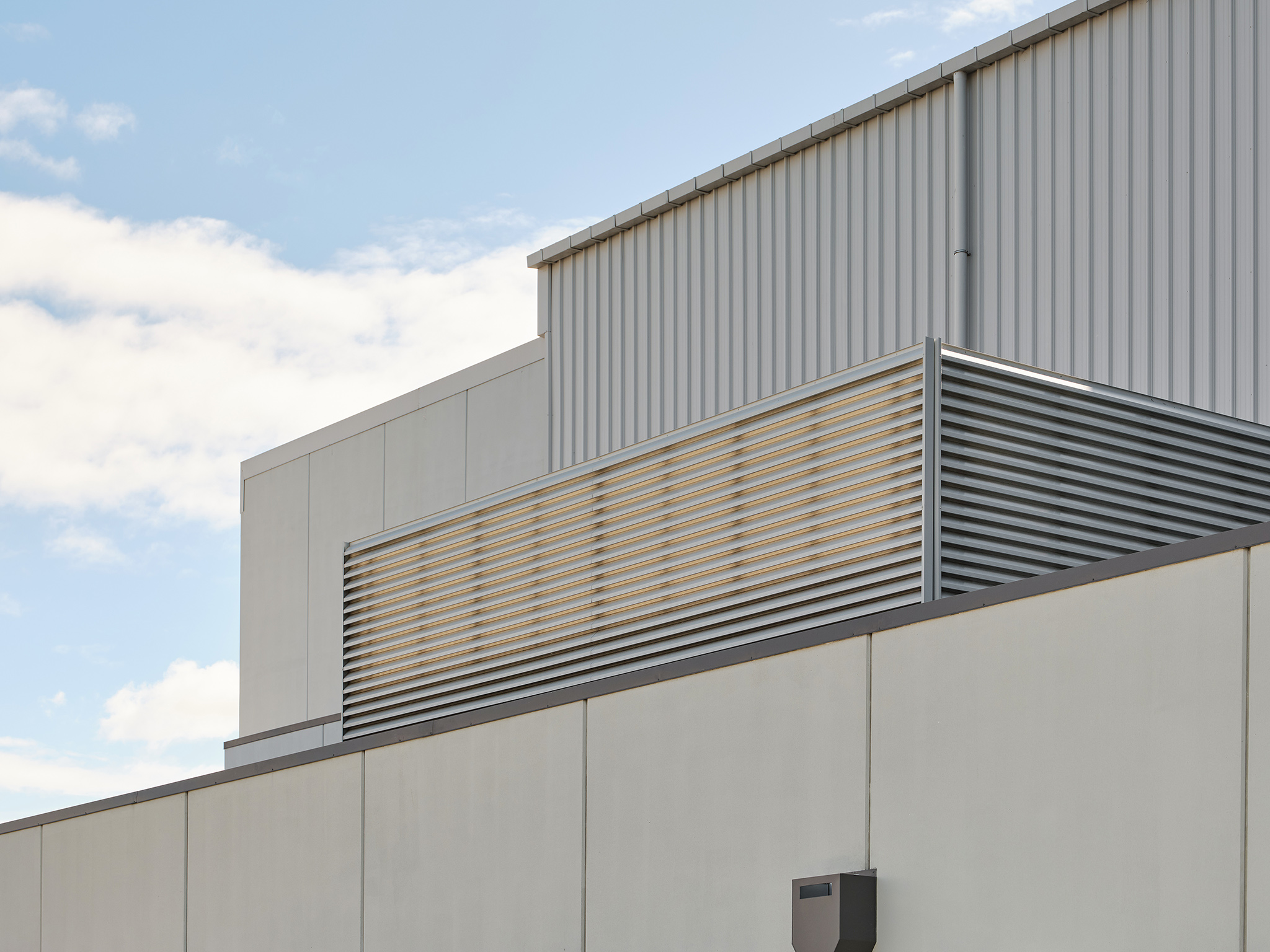

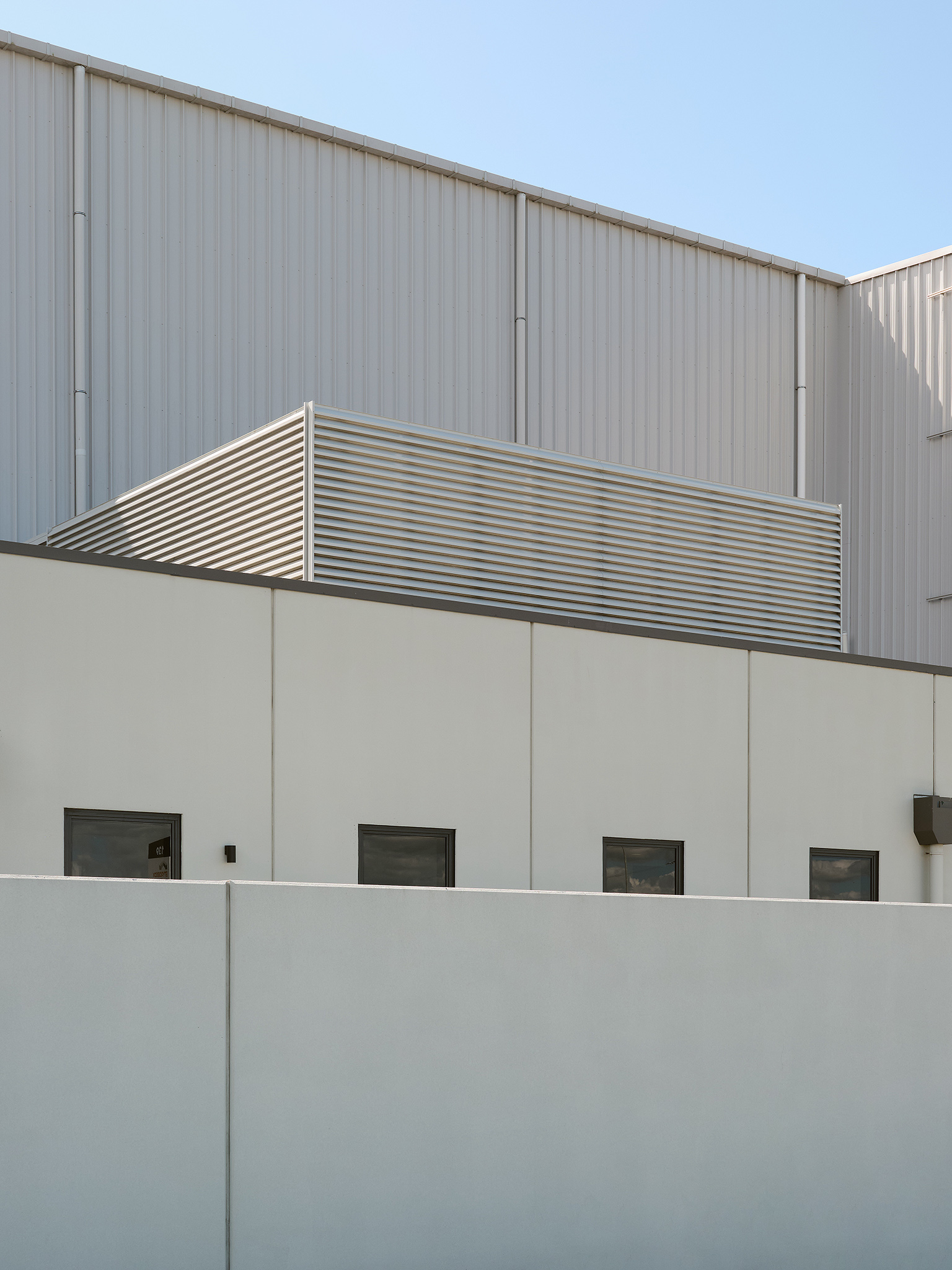

The VL-70S louvre system combines medium rain defence with a robust extruded blade profile, ensuring durability and resistance to vandalism. Its design allows for seamless, clip-fixed installations over long runs, providing a clean and uninterrupted visual appearance. Cost-effective and practical, the VL-70S is an ideal choice for plant screens, car parks, and mechanical enclosures where both functionality and visual screening are essential.
| Dimensions |
Depth: 75mm Height: Minimum 300mm, Maximum 3000mm (panel modules can be spliced together to form larger louvres) Width: Minimum 200mm, Maximum 3000mm (panel modules can be spliced together to form larger louvres)
|
| Blade Centres |
100mm
|
| Geometric Free Area (active blades only) |
39%
|
| Surface Finish Options |
Powdercoated Anodised Raw Aluminium (Mill)
|
| Perimeter Frame Options |
Channel Frame
|
| Ancillaries Options |
Bird Mesh Insect Mesh Solid Blanking Perimeter Mounting Angle
|
VL-70S_Product Sheet (Standard Frame) PDF
VL-70S_Installation Details (Frameless Postfix) PDF
VL-70S_Installation Details (Precast) PDF
VL-PA_Louvre Plenum Adaptor PDF
