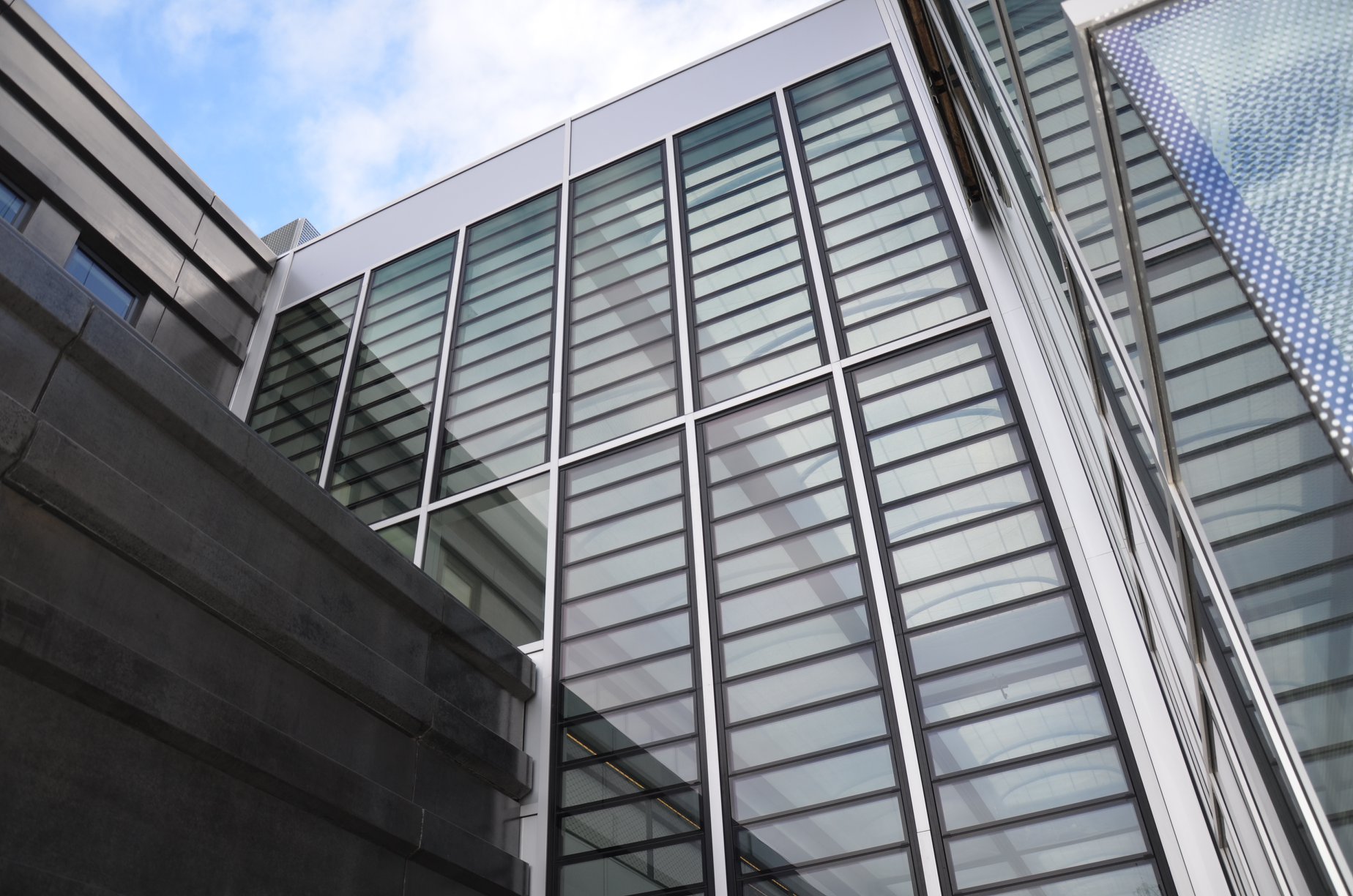

Double or triple-glazed, thermally broken flush glazed louvre blades. The Ventuer HAHN-S9iVA louvre window provides excellent ventilation, weather tightness and thermal protection with a clear flush all-glass look to outside of units for seamless integration into the facade design.
| Profiles |
Window Frame: Aluminium, thermally broken Louvre Blade Frame: Aluminium, thermally broken |
| Dimensions |
Frame Width: Minimum 250mm, Maximum 1600mm Frame Height: Minimum 250mm, No Maximum Height (large panels are spliced together) Frame Depth: 47mm / 50.4mm Louvre Blade Height: Minimum 200mm, Maximum 350mm |
| Maximum Blade Opening Angle | 84° |
| Glazing |
Glazing: Insulated glass (double/triple) Glass thickness: 32/34 mm Standard glazing: 4/20/8 or 6/20/8 Glass types: Float, Toughened, Laminated, Semi-Tempered (outer pane is always made of toughened glass). Alternative infill types: Insulated Aluminium Panel, Facade panel |
| Control Options |
Manual Lever Handle Electric Actuator |
| Surface Finish Options |
RAL Powdercoat Colours Anodised |
| Performance Certifications | |
| CE certified (EN 12101-2) | Smoke vent |
| Aerodynamic Performance Cv | 0.54 |
| Air permeability (EN 12207) | Class 3 |
| Watertightness (EN 12208) | Class 4A |
| Resistance against wind load (EN 12210) | Certified |
| Uw-Value (EN ISO 10077) | Uw (max) = 1.7 W/m2K |
| Further characteristics | Ball protection proof (DIN 18032-3) |
