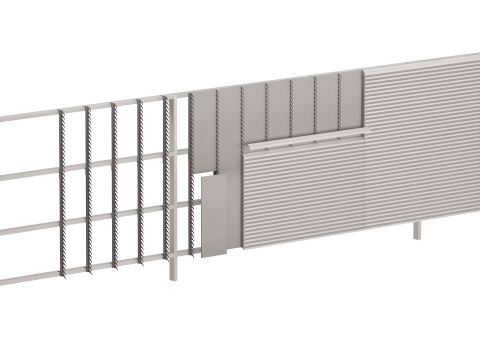

The Ventuer AB-55 is a solid acoustic screening system designed to reduce airborne noise transmission and provide sound absorption on the exposed face. Constructed from aluminium sheet with a sound-absorbent core and stainless steel internal mesh liner, it delivers a strong, corrosion-resistant and washable solution suitable for both internal and external applications. With a slimmer profile, the AB-55 balances acoustic performance with space efficiency. The system achieves an STC rating of 33 and an NRC of 1.05.
| Sound Transmission Loss (ISO 15186) | Frequency (Hz) | One-third Octave (dB) |
| 63 Hz | 11.9 dB 125 Hz | 16.1 dB 250 Hz | 20.1 dB 500 Hz | 29.0 dB 1000 Hz | 39.8 dB 2000 Hz | 48.4 dB 4000 Hz | 50.4 dB |
|
| Sound Absorption (ISO 354) | Frequency (Hz) | Coefficient (a) |
| 63 Hz | 0.20 125 Hz | 0.35 250 Hz | 0.86 500 Hz | 1.00 1000 Hz | 1.00 2000 Hz | 1.00 4000 Hz | 1.00 |
|
| Surface Finish Options |
Powdercoated Anodised Raw Aluminium (Mill) |
| Ancillaries Options |

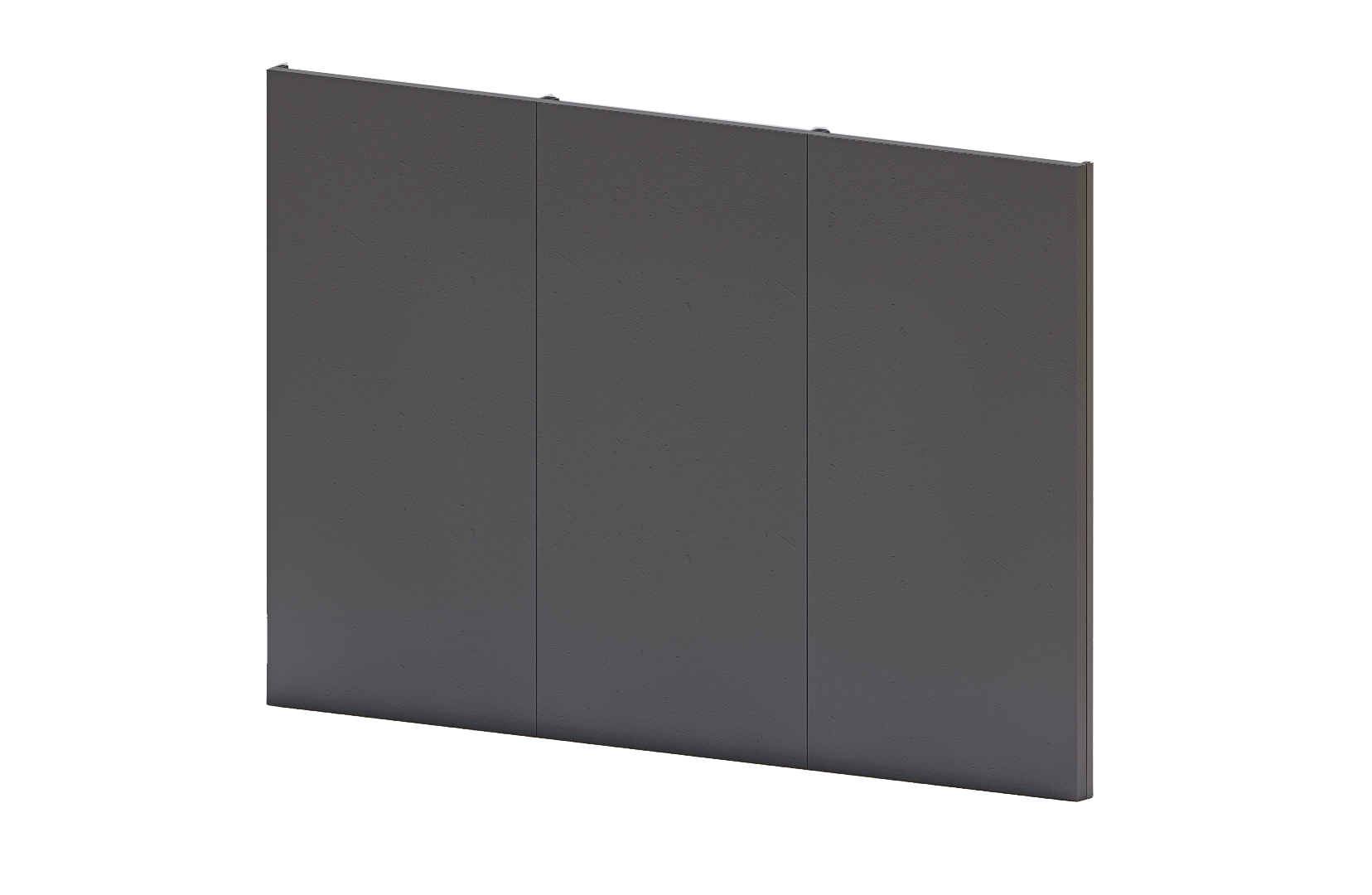

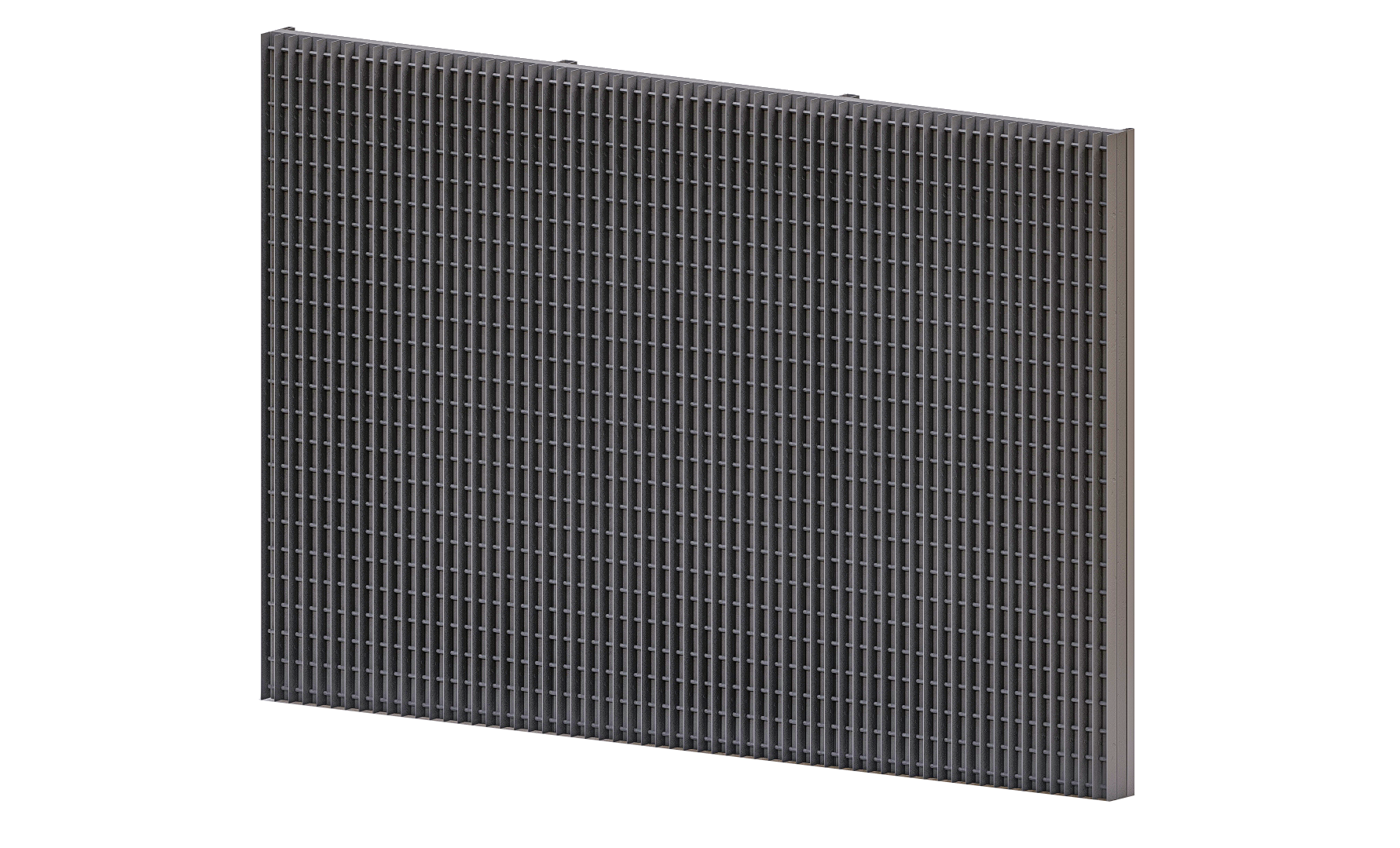

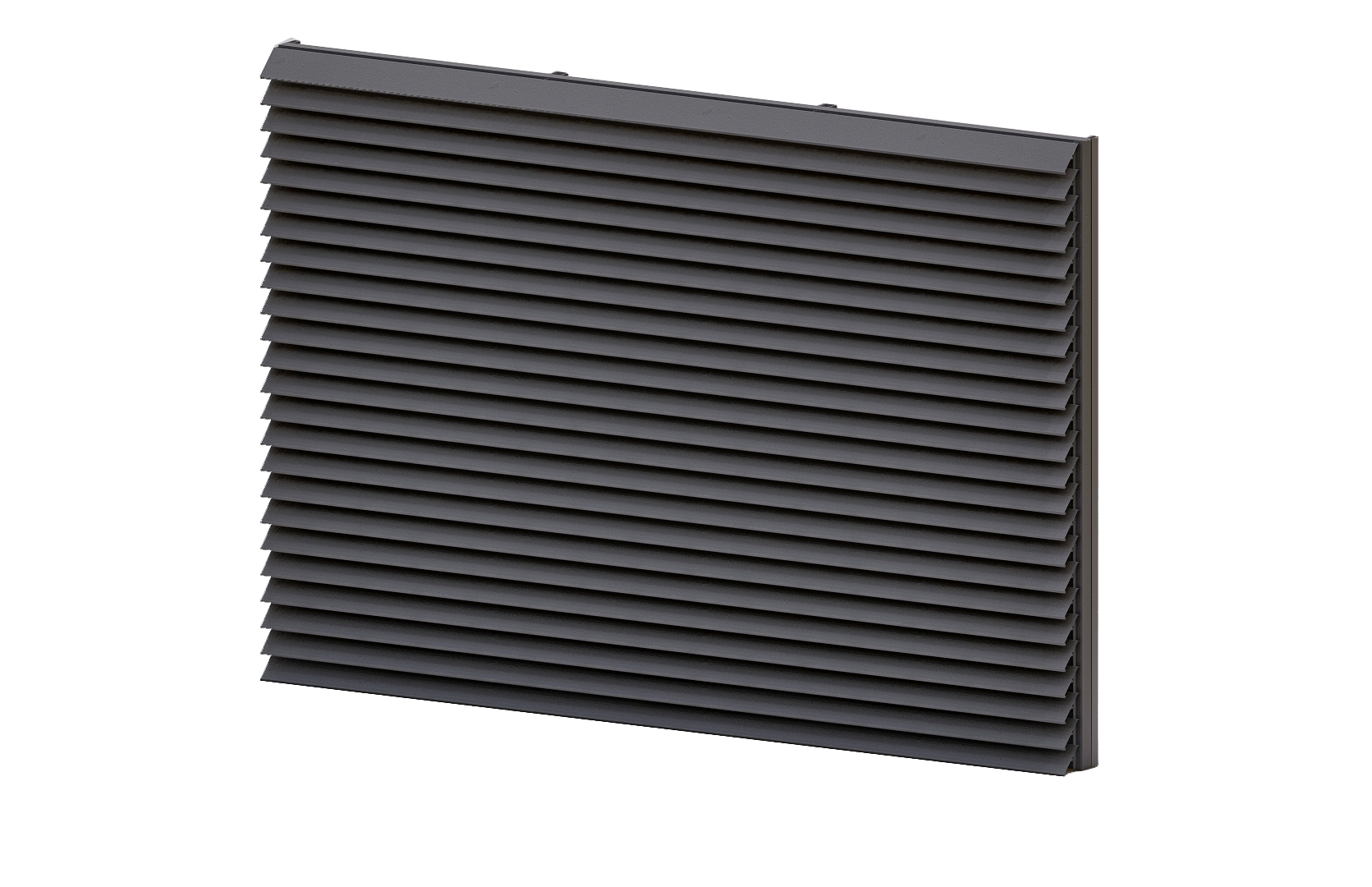

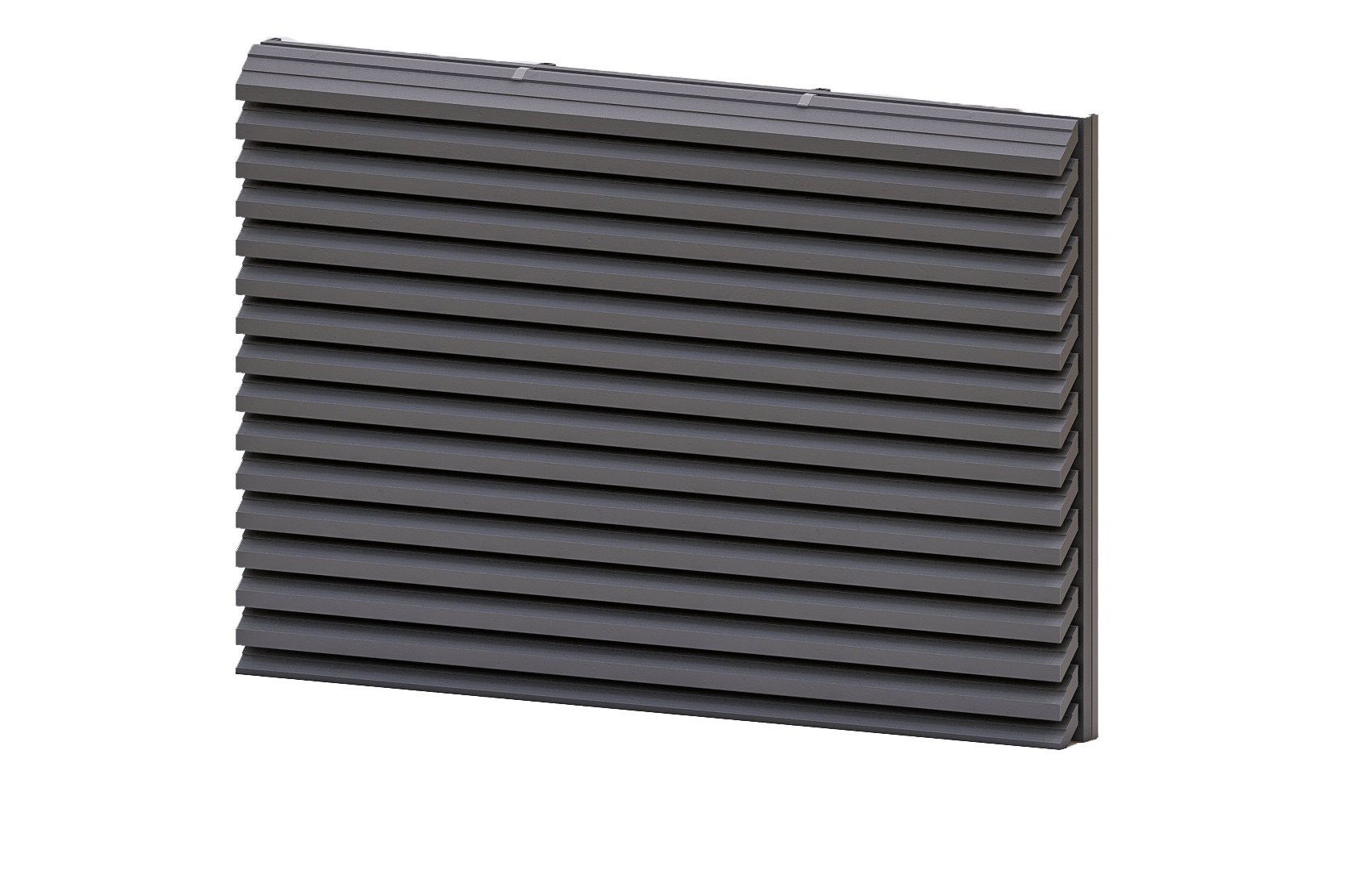

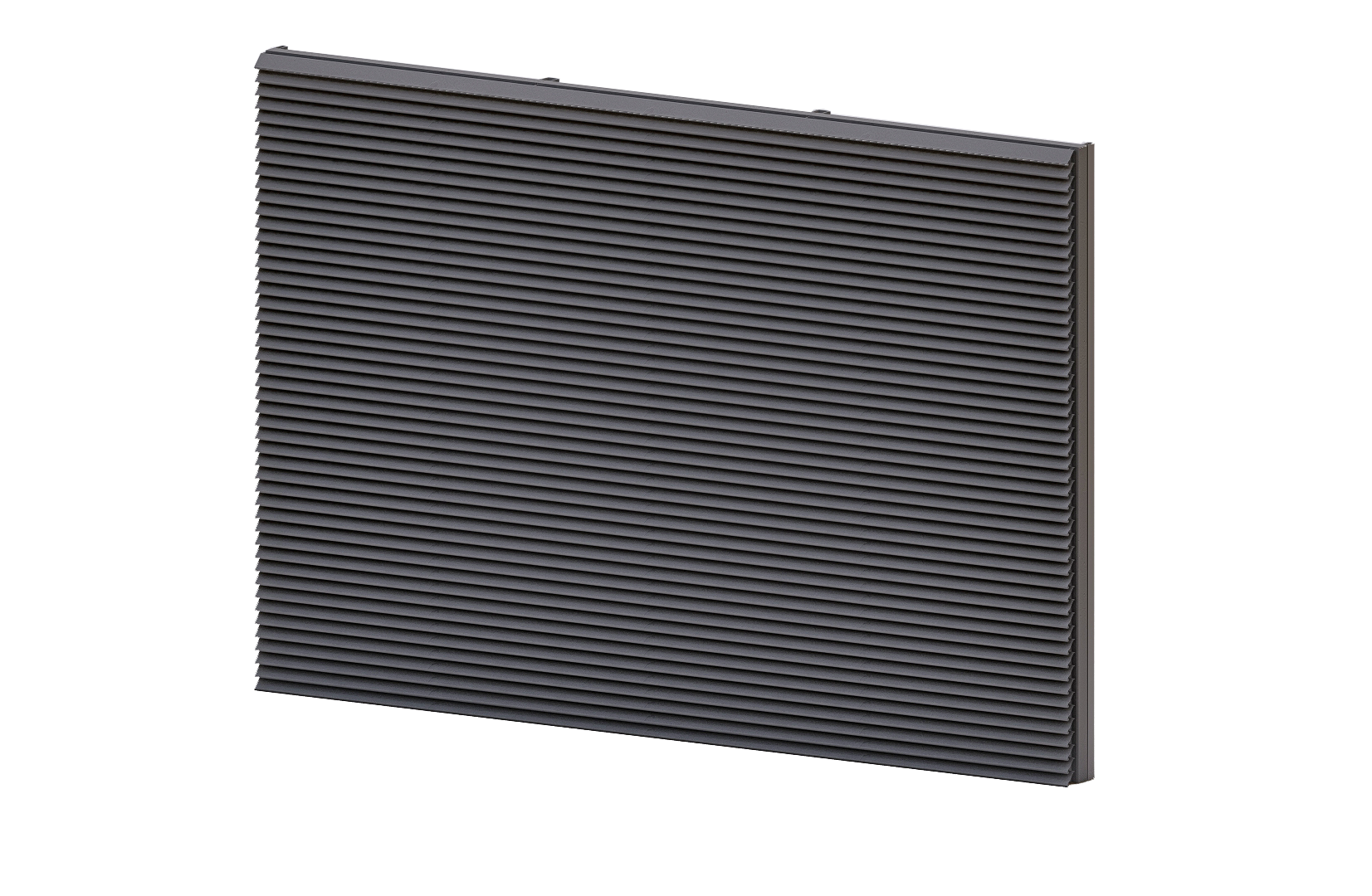

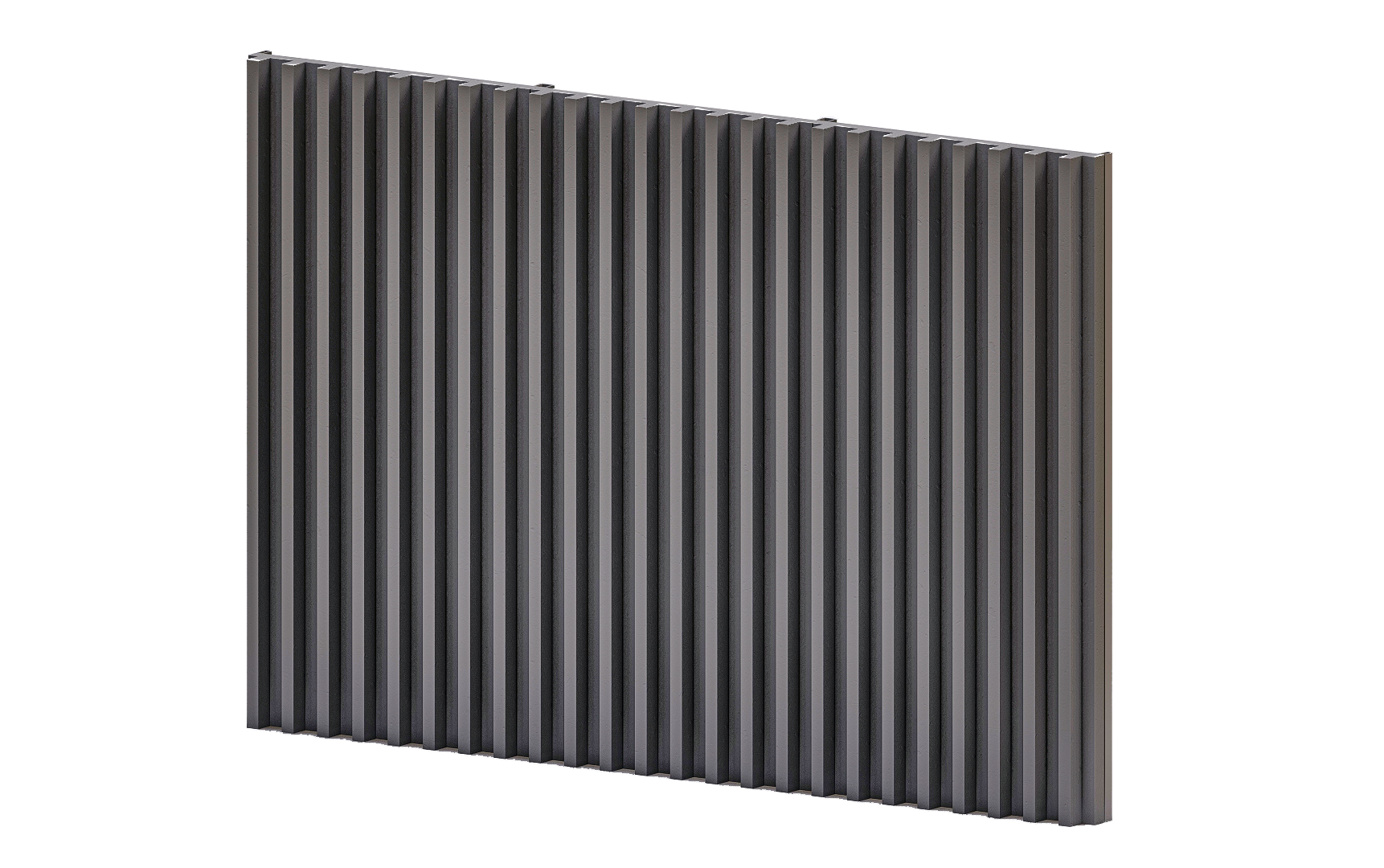

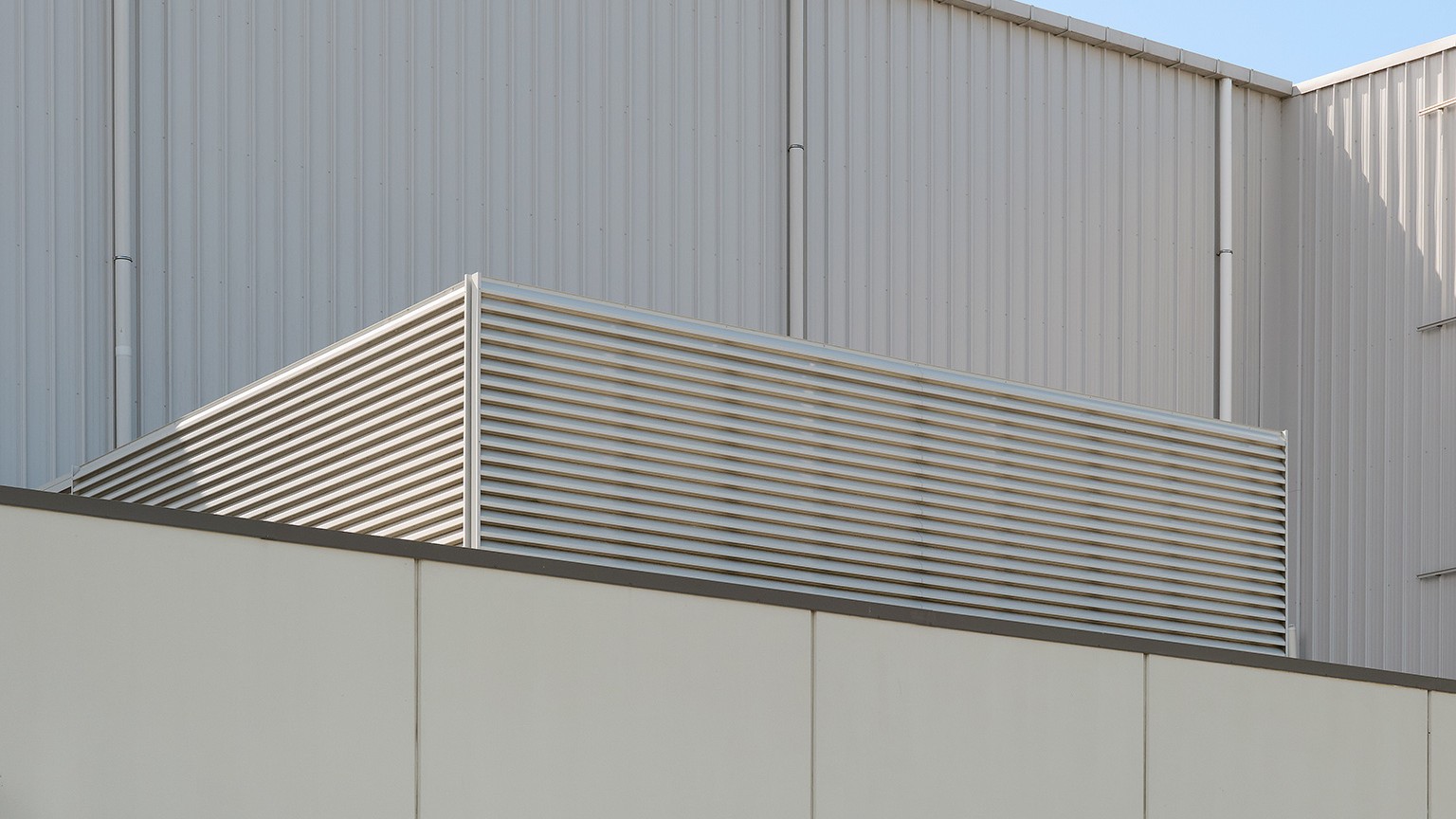

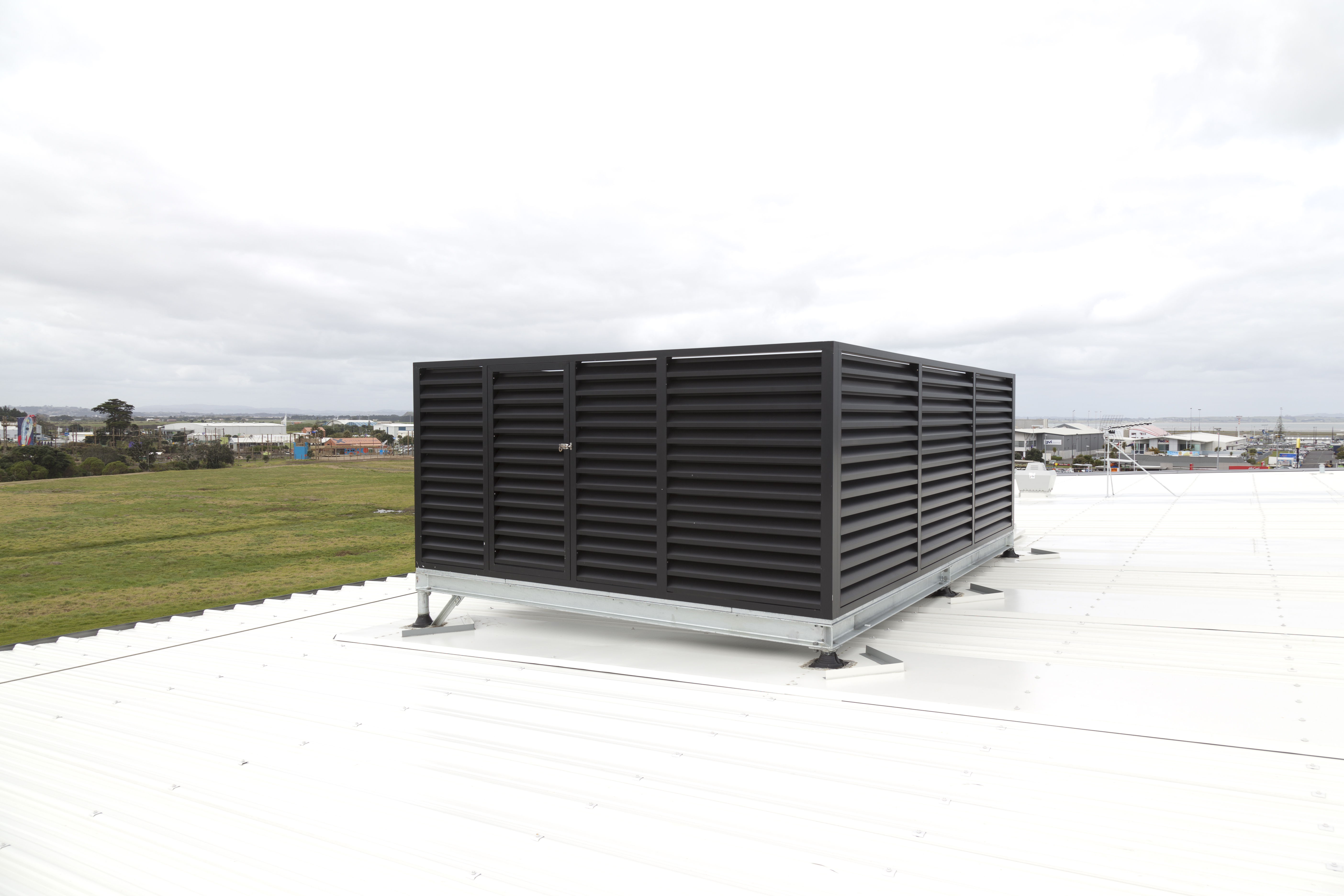

Flat Aluminium Face Horizontal Louvres - Small (50mm) Horizontal Louvres - Medium (100mm) Horizontal Louvres - Large (150mm) Vertical Battens – Square or Rectangular Profiles Swaged Aluminium Grating |
AB Series Data Sheet (PDF)
